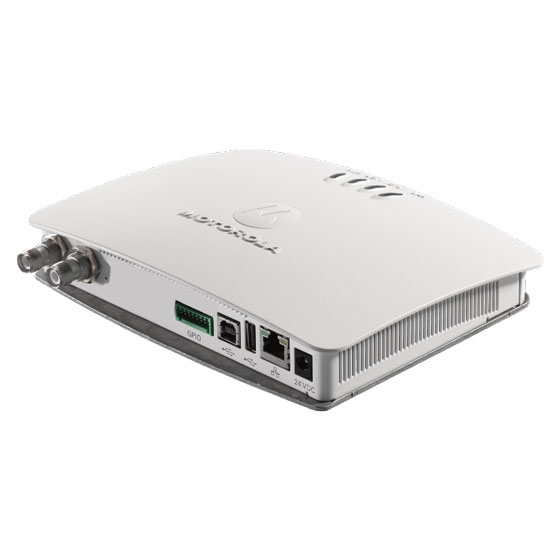

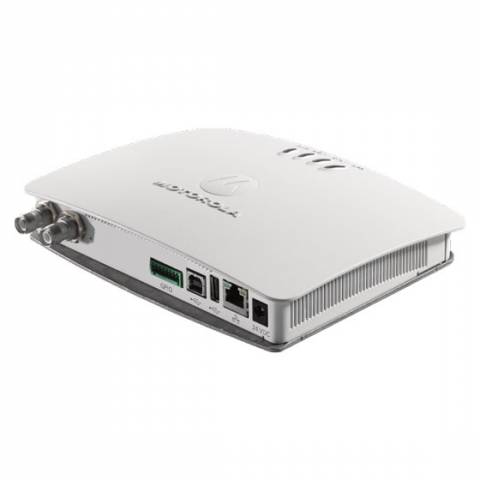

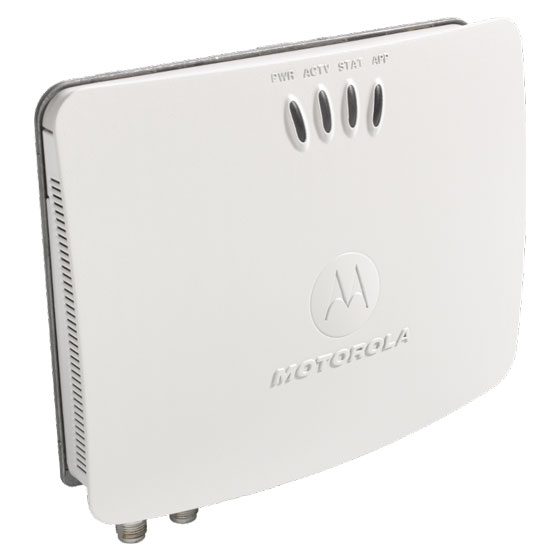

Zebra FX7500 Fixed RFID Reader - Business Class - 2 Port

Zebra FX7500 Fixed RFID Reader - Business Class - 2 Port
Click image for larger view
    Code: FX7500-22320A50-US
    Price: $801.90
    Quantity in Basket: None
    Not Yet Rated | Write the First Review
      Add Power Supply (Required for GPIO and Non PoE use)
      Add US AC Line Cord for Power Supply
      Add 3 Year Zebra OneCare Select Service
    Quantity:

    QUESTIONS?

    Call us at 1-877-640-4152

    1-877-640-4152

    Send us an email at sales@ptshome.com
    Chat with a member of our team

    Live Chat

    Close
    Calculate Shipping: Zebra FX7500 Fixed RFID Reader - Business Class - 2 Port

    Shipping Calculator Shipping Calculator

    RFID begins with the radio, so that's where Zebra began with its FX7500 2 Port Fixed RFID Reader. A new RFID radio technology was created, then paired with a new, more flexible Linux-based network architecture that integrates the tools and open-standard interfaces you need for faster, more accurate read rates and more consistent performance even in challenging environments.

    Complete Fixed RFID Kits Available Here with ClearStream RFID Software >>

    The result is a fixed RFID reader that sets a new performance standard, delivering peak performance at all times with excellent reader sensitivity and better interference rejection, at a lower cost per read point. It simply works better and it costs less.

    Find RFID Tags to use with your FX7500 Reader >>

    What's Included:

    • Zebra FX7500 Fixed RFID Reader with 2 Antenna Ports and POE
    • Mounting Bracket
    RFID freedom like you’ve never seen before. See how easy RFID can be.
    RFID solutions with ClearStream RFID

    Note: Requires read antennas and cables to fully function. Please see Antennas and Cables tab.

    Zebra FX7500-22320A50-US Features

    • 2 monostatic ports (Reverse Polarity TNC)
    • Linux based OS with 512 MB Flash; 256 MB DRAM
    • Multicolor LEDs: Power, Activity, Status and Applications
    • GPIO: 2 inputs, 3 outputs, optically isolated
    • 10/100 BaseT Ethernet (RJ45) w/ POE support; USB Client (USB Type B), USB Host Port (Type A)
    • Support for POE and POE+ (Power Over Ethernet)
    • US (only) Reader: 902 MHz to 928 MHz
    • Small Footprint and Rugged Construction
    • LLRP Host Interface Protocol
    • Requires Power Supply and AC Line Cord to use GPIO Ports (see above when adding to cart)

    Zebra FX7500 Specifications Zebra FX7500 Full Specifications - PDF

    Customer Ratings & Reviews

    Be the first to rate this item!

    Write Review

    Protect Your Zebra FX7500-22320A50-US

    Your Zebra FX7500 Fixed RFID Reader comes with a standard 1 year warranty that protects you from manufacturer defects only. That does not cover any damage you do to the reader as accidents can happen. That is where Zebra OneCare Select Service comes in. This service covers your Zebra FX7500 for 3 years with hassle free repair service keeping your RFID readers running at peak performance.

    3 Year Zebra OneCare Select Service

    If you wish to add this Warranty, Select the options above the "ADD TO CART" button.

    FAQ and Support Resources for the Zebra FX7500-22320A50-US

    Do I need software for my Zebra FX7500 to read RFID Tags and save data?
    Yes, the Zebra FX7500 does not come with software. Our ClearStream RFID Software is a great solution for the Zebra FX7500 and is easy to configure allowing you to read RFID tag data to the data destination of your choice. Bundled Kits are also available with Hardware and software.

    Zebra FX7500 Integrator Guide Zebra FX7500 Integrator Guide

    Zebra FX7500 Quick Start Guide Zebra FX7500 Quick Start Guide
