Alien ALR-8696-C RFID Antenna
SKU: ALR-8696-C
Alien ALR-8696-C RFID Antenna
SKU: ALR-8696-C
Product Description

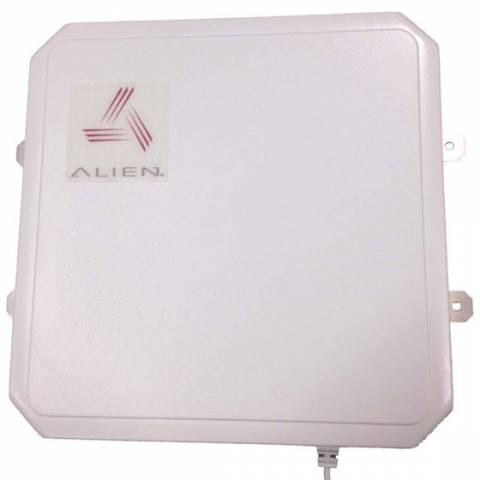

The Alien Technology ALR-8696-C Antenna is a high performance circularly polarized panel antenna that provides reception and transmission of signals in the 865-960 MHz frequency band. The design methodology achieves maximum efficiency and performance across the entire frequency band and tag orientations.
Complete Fixed RFID Kits Available Here with ClearStream RFID Software >>
We recommend using this antenna for applications in Warehouses, Distribution Centers, Transit Terminals, Conveyer Belts, Airports and hospitals.
Find RFID Tags to use with your Fixed RFID Readers >>
What's Included:
- ALR-8696-C Wide Band Antenna with 20ft Cable
- Flush Mount Bracket
Alien ALR-8696-C Barcode Terminal Features
- Freq. Range: 865-960 MHz
- Gain: 8.5 dBic
- Front to Back Ratio: 20dB
- Polarization: Right-hand Circular Polarization
- 3db Beam Width: 65°
- Dimensions: 10.2” x 10.2” x 1.32”
- Connector: Coax Pigtail, Rev TnC Male
- Weight: 2.5 lbs (1.13 kg)
- Cable Loss: 2.2dB (20ft)
