Zebra AN620-SCL71131US AN620 RFID Antenna
SKU: AN620-SCL71131US
Zebra AN620-SCL71131US AN620 RFID Antenna
Product Description

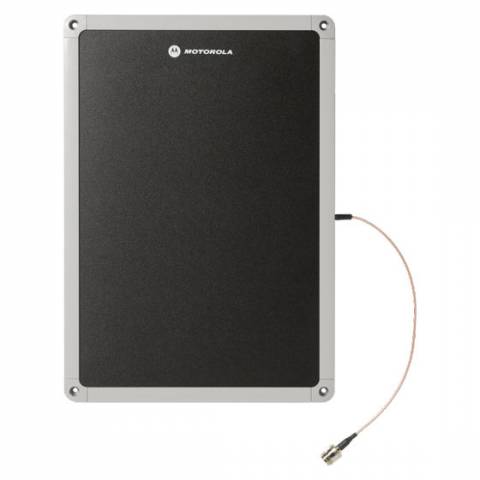

AN620-SCL71131US - Zebra AN620 Slim, Ultra Low Profile, Flat Panel RFID Antenna (US Frequency)
A larger version of the AN610, the slim AN620 antenna is ideally suited for use in wall mount, doorway, under counter, above counter as an RFID pad, POS or end-cap displays like jewelry counter applications. As one of the newest ultra-low profile members of the Zebra family, the AN620 features a simple, integrated mounting system that lets it stand just under one-half inch (12mm) from horizontal or vertical mounting surfaces.
Complete Fixed RFID Kits Available Here with ClearStream RFID Software >>
Find RFID Tags to use with your Fixed RFID Readers >>
Note: Requires cable for connection to reader. Please see Add Ons tab.
Zebra AN620-SCL71131US Barcode Terminal Features
- Freq. Range: 902-928 MHz
- Gain: 7.0 dBic
- Front to Back: Ratio 22dB
- Polarization: Left-hand Circular Polarization
- 3db Beam Width: 75° horizontal/48° vertical
- Dimensions: 15.39 in. L x 10.82 in. W x 0.47 in. D
- Connector: Type ‘N’ female, Pig-tail
- Weight: 2.2 lbs./1.0 kg
- Casing: Superior Kydex
