Zebra ZD500R Desktop RFID Printer, UHF, USB, 10/100 Ethernet, EZPL
SKU: ZEB-ZD500R
Zebra ZD500R Desktop RFID Printer, UHF, USB, 10/100 Ethernet, EZPL
Product Description

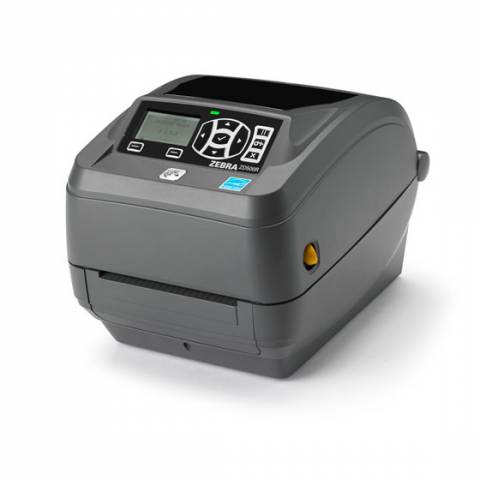

The Zebra ZD500R Desktop RFID Printer extends Zebra's broad range of RFID printers by adding UHF RFID printing and encoding to Zebra's line of industry-leading thermal desktop printers. Designed for applications where space is at a premium, the compact ZD500R offers simple, one-touch printing and encoding, straightforward loading, and automatic RFID calibration, making it ideal for applications where technical support staff is not available, such as retail in-store exception tagging.
Zebra ZD500R RFID Printing Kit >>
What's Included:
- Zebra ZD500R RFID Printer w/ USB, Ethernet, Serial, Parallel Connectivity (Cables not Included)
- Power Supply and Line Cord
- Cleaning Pen
- Driver and info CD
- Ribbon Core
Available Printer Models: ZD50042-T012R1FZ, ZD50042-T112R1FZ, ZD50042-T212R1FZ, ZD50042-T013R1FZ, ZD50042-T113R1FZ, ZD50042-T213R1FZ, ZD50043-T012R1FZ, ZD50043-T112R1FZ, ZD50043-T212R1FZ, ZD50043-T013R1FZ, ZD50043-T113R1FZ, ZD50043-T213R1FZ.
Note: Additional products and software may be required.
Zebra ZEB-ZD500R Barcode Terminal Features
- Resolution: 203 dpi or 300 dpi
- Memory: 128 MB Std SDRAM memory, 256 MB Std Flash memory)
- Print Width: 4.09”/104 mm
- Print Length: 39”/990 mm
- Print Speed: 4” or 6" per second
- Media Sensors: Multi-position gap and moveable black-line media sensors
- Connectivity: USB, 10/100 Ethernet, parallel and serial (Wi-Fi Option Available)
- Supports tags compatible with UHF EPC Gen 2 V1.2/ISO 18000-6C
- Prints and encodes tags with a minimum pitch of 0.6”/16 mm
- RFID ZPL® commands provide compatibility with existing Zebra RFID printers
- Integrated ThingMagic® RFID Reader/Encoder
FAQ and Support Resources for the Zebra ZEB-ZD500R
Do I need software for my Zebra ZD500R to print RFID labels?
Although you may be able to integrate this printer with existing systems, PTS recommends Seagull Scientific's Bartender software for designing and printing your RFID labels and tags.
Bundled Kits are also available with Printers, software, Labels and Ribbon.
