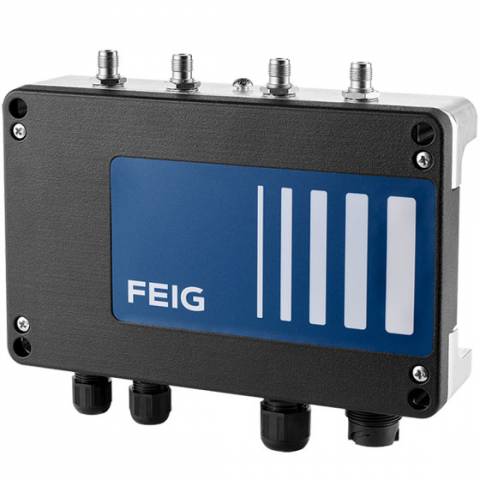

Feig 701900010 LRU4000 Long Range RFID Reader
SKU: 701900010
Feig 701900010 LRU4000 Long Range RFID Reader
Product Description
The Feig LRU4000 Long Range UHF RFID Reader is a robust, high performance & highly rugged Long Range Reader designed for applications in any environment no matter how extreme. With a read range of more than 10 m, 4 antenna connections and 4 cable glands, a variety of long range applications can be utilized.
For applications in harsh environments, the reader offers sealed connections and cable glands as well as plug-in terminals inside the device. This makes it the first choice for use on machines, conveyor systems or other industrial applications. The reader can be mounted directly on a flat surface, via a VESA on a post, via an adapter on a DIN rail or via an plastic insulation plate on a vehicle chassis - you have the choice!
Feig LRU4000 Features:
- High receiver sensitivity cares for an enlarged and at the same time homogeneous tag detection range
- Allows the realization of secure UHF systems by full support of transponder chips according to EPC Class1 Gen2 specification and ISO 29167 (e. g. NXP UCODE DNA)
- Edge-Computing Platform with Linux OS for installation and operation of custom specific applications directly on the reader.
- 2 Inputs, 2 outputs and 2 relay outputs suit industrial needs and allow control of external components and signalization of different events
Complete Fixed RFID Kits Available Here with ClearStream RFID Software >>
Find RFID Tags to use with your Feig LRU4000 Reader >>
Note: Requires read antennas and cables to fully function. Please see Accessories tab.
This is a Non returnable item and is final sale unless defective. Please contact us if you have questions before purchasing.
Feig 701900010
- 4 x RP-TNC-Female (50 Ohm), integrated Multiplexer, support of external Multiplexer ID ISC.ANT.UMUX
- RF-channel monitoring, Antenna SWR control, internal overheating control
- Highly visible status display (green/red/blue; customizable indication)
- ARM single Cortex-A7 800 MHz + Cortex-M4 (RFID), 1 GB Flash, 512 MB RAM
- Connections: Power supply, RS485, Mini USB Connector, I/Os: plug-in terminals, Ethernet: RJ45 socket on the outside of the housing with the option of sealing
- Supports Host Mode, Buffered Read Mode, Notification Mode
- US (only) Reader: 902 MHz to 928 MHz
- Output Power 100 mW to max. 2 W configurable in steps of 100 mW
- Aluminium housing, plastic cover, IP 65 / IP 67 sealing
- Dimensions 225 mm x 190 mm x 55 mm (8.86 x 7.48 x 2.17 inch), 2.64 lbs
FAQ and Support Resources for Feig 701900010
Do I need software for my Feig LRU4000 to read RFID Tags and save data?
Yes, the Feig LRU4000 does not come with software.
Our ClearStream RFID Software is a great solution for the Feig LRU4000 and is easy to configure allowing you to read RFID tag data to the data destination of your choice.
Bundled Kits are also available with Hardware and software.
What is the difference between the LRU1002 and the LRU4000?
The new ID LRU4000 will have a new more compact housing, a strong and robust mechanical and electrical design, an integrated Web-Interface, and a Linux platform with flexibility for customers to create Edge Computing applications.
