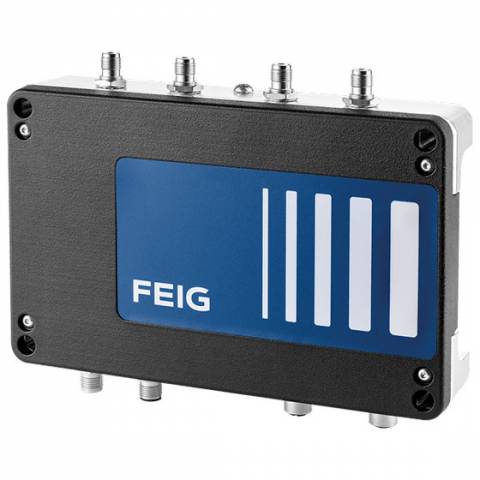

Feig 702100010 LRU4000X Long Range Industrial RFID Reader
SKU: 702100010
Feig 702100010 LRU4000X Long Range Industrial RFID Reader
Product Description
The Feig LRU4000X Long Range UHF RFID Reader is a robust, high performance & highly rugged Long Range Reader designed for applications in any environment no matter how extreme. The LRU4000X is the most rugged model of LRU series readers, specially designed for any industrial use case, particularly exceling in railway applications. With a read range of more than 10 m, 4 antenna connections and 4 cable glands, a variety of long range applications can be utilized.
The LRU4000X meets the relevant requirements for use in railway applications and is particularly suitable for use on-board. These include, for example, reading position markers, updating passenger information systems or selective door opening. For applications in harsh environment the reader offers robust M12 connectors and is therefore the first choice for use with machines, in forklift trucks or conveyor systems.
Feig LRU4000X Features:
- High receiver sensitivity cares for an enlarged and at the same time homogeneous tag detection range
- Allows the realization of secure UHF systems by full support of transponder chips according to EPC Class1 Gen2 specification and ISO 29167 (e. g. NXP UCODE DNA)
- Edge-Computing Platform with Linux OS for installation and operation of custom specific applications directly on the reader.
- 2 Inputs, 2 outputs and 2 relay outputs suit industrial needs and allow control of external components and signalization of different events
Complete Fixed RFID Kits Available Here with ClearStream RFID Software >>
Find RFID Tags to use with your Feig LRU4000X Reader >>
Note: Requires read antennas and cables to fully function. Please see Accessories tab.
This is a Non returnable item and is final sale unless defective. Please contact us if you have questions before purchasing.
Feig 702100010
- 4 x RP-TNC-Female (50 Ohm), integrated Multiplexer, support of external Multiplexer ID ISC.ANT.UMUX
- RF-channel monitoring, Antenna SWR control, internal overheating control
- Highly visible status display (green/red/blue; customizable indication)
- ARM single Cortex-A7 800 MHz + Cortex-M4 (RFID), 1 GB Flash, 512 MB RAM
- Connections: I/O M12 A-coded (8-pin), RS485 / Relay M12 A-coded (8-pin), Ethernet M12 D-coded, Power Supply M12 A-coded (4-pin)
- Supports Host Mode, Buffered Read Mode, Notification Mode
- US (only) Reader: 902 MHz to 928 MHz
- Output Power 100 mW to max. 2 W configurable in steps of 100 mW
- Aluminium housing, plastic cover, IP 65 / IP 67 sealing
- Dimensions 225 mm x 175 mm x 55 mm (8.86 x 6.88 x 2.17 inch), 2.64 lbs
FAQ and Support Resources for Feig 702100010
Do I need software for my Feig LRU4000x to read RFID Tags and save data?
Yes, the Feig LRU4000x does not come with software.
Our ClearStream RFID Software is a great solution for the Feig LRU4000x and is easy to configure allowing you to read RFID tag data to the data destination of your choice.
Bundled Kits are also available with Hardware and software.
What is the difference between the LRU1002 and the LRU4000?
The new ID LRU4000 will have a new more compact housing, a strong and robust mechanical and electrical design, an integrated Web-Interface, and a Linux platform with flexibility for customers to create Edge Computing applications.
