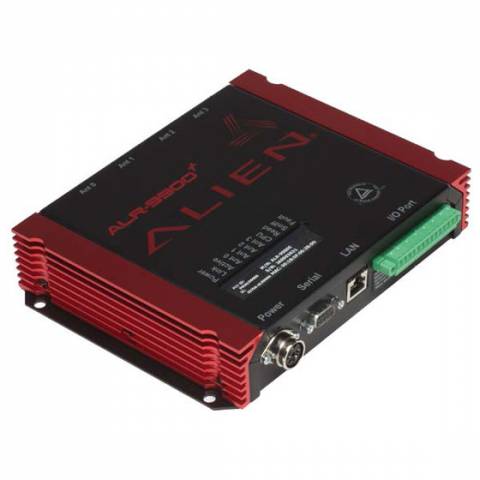

Alien ALR-9900-PLUS RFID Reader
SKU: ALR-9900-PLUS
Alien ALR-9900-PLUS RFID Reader
Product Description
The Alien Technology ALR-9900+ Enterprise Fixed RFID Reader enables users to deploy best-in-class EPC Gen 2 RFID solutions for supply chain, manufacturing and asset management applications.
Complete Fixed RFID Kits Available Here with ClearStream RFID Software >>
It's industry leading Autonomous Mode and superior sensitivity enables the High Performance ALR-9900+ reader to obtain best-in-class read rates, allowing it to accommodate dynamic, fast paced environments with minimal network infrastructure and read points.
Find RFID Tags to use with your Alien ALR-9900+ Reader >>
The ALR-9900+'s flexible GPIO system allows simultaneous communication with up to 12 external devices (4 inputs and 8 outputs), allowing control of various gates, switches and devices expected in today's complex industrial and commercial systems.
What's Included:
- Alien ALR-9900+ High Performance Reader with 4 Antenna Ports
- Power Supply and US AC Line Cord
- Serial Cable
Note: Requires read antennas to fully function. Please see Antennas and Cables tab.
Alien ALR-9900-PLUS Barcode Terminal Features
- 4 reverse polarity TNC monostatic ports; circular or linear polarization; near and far field compatible
- XScale processor, Linux, 64 MBytes RAM, 64 MBytes Flash
- Supports EPC Gen 2; ISO 18000-6c RFID Tag Protocols
- Dense Reader Mode, auto event triggering and event management
- 902 MHz – 928 MHz Frequency
- 31.6dBm (Radiated power limited by local regulations &/or site licenses; typical: 4 watts EIRP)
- GPIO: Optically isolated. 0-24VDC rail. 4 inputs. 8 outputs (500mA capacity), installation-friendly connector
- Alien Reader Protocol and LLRP, firmware upgradable
- 8”L x 8.3”W x 1.8”H and weighs 4.4 lbs
FAQ and Support Resources for the Alien ALR-9900-PLUS
Do I need software for my Alien ALR-9900+ to read RFID Tags and save data?
Yes, the Alien ALR-9900+ does not come with software. Our ClearStream RFID Software is a great solution for the Alien ALR-9900+ and is easy to configure allowing you to read RFID tag data to the data destination of your choice. Bundled Kits are also available with Hardware and software.
