PTS Feig Long Range RFID Kit w/ ClearStream RFID Software

PTS Feig Long Range RFID Kit w/ ClearStream RFID Software
Click image for larger view
    Code: FGE-LRU1002-KIT
    Price: $2,258.00
    Quantity in Basket: None
    Choose RFID Sample Tags:
      Add RFMAX RFID Power Mapper - $250.00


    Call us at 1-877-640-4152


    Send us an email at
    Chat with a member of our team

    Live Chat

    Calculate Shipping: PTS Feig Long Range RFID Kit w/ ClearStream RFID Software
    Shipping Calculator Shipping Calculator

    Everything you need to quickly create an enterprise class Fixed RFID System without programming

    The Feig LRU1002 Long Range RFID Kit is an affordable, scalable RFID System for applications ranging from equipment check in-out through inventory audits.

    1. Track entire room contents instantly with the touch of a button.
    2. Set up scheduled tasks to do timed audits of critical assets.
    3. Track incoming and outgoing employees and the equipment they are carrying.

    Unlimited tasks can be set up all streaming data back to Excel workbooks, databases and other data sources or systems.

    Find RFID Tags to use with your Feig RFID Kit >>

    The Feig LRU1002 Long Range RFID Kit system features best in class Feig RFID Readers and the innovative, easy to configure and grow RFID Software, ClearStream RFID. Start with one systemand grow as you see fit to track the information you need and map it back to any pre-existing database, excel sheet or management system.

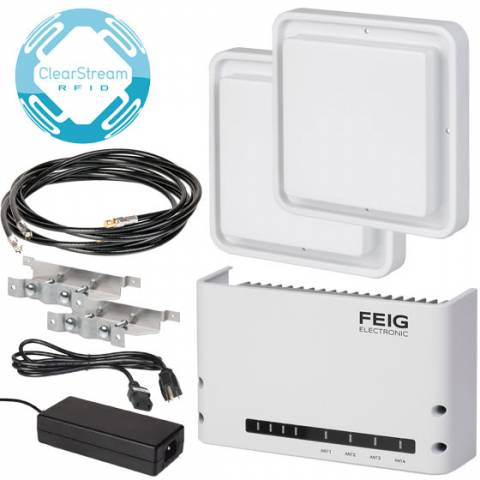

    This Kit Includes:

    • 1yr ClearStream RFID Single Reader Subscription* - easy to use software with the flexibility to capture and sync RFID data any way you want.

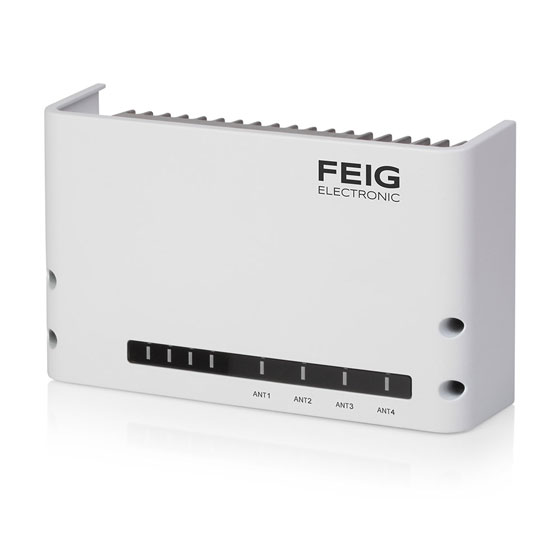

    • Feig LRU1002 RFID Reader - suited for enterprise deployments of all sizes that require long read ranges.
    • Power Supply and US AC Line Cord

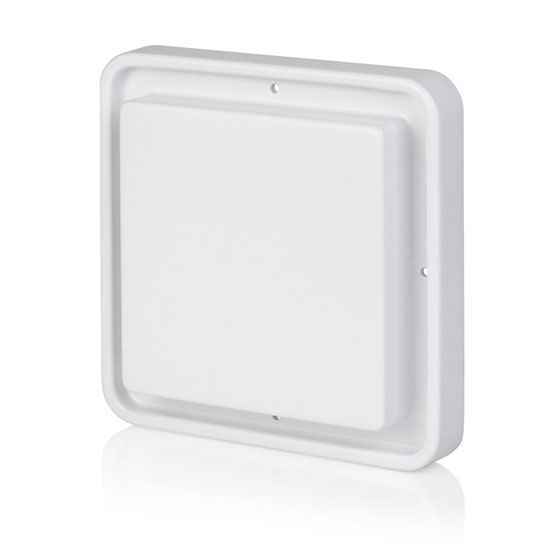

    • 2 Feig Indoor/Outdoor RFID Antennas, Mounting Brackets and Cables
    • Choice of Sample Tag Pack

    * Subscription will auto renew after 1 year.

    Feig LRU1002 Hardware Specs

    • 4 x SMA-Female (50 Ohm), integrated Multiplexer, support of external Multiplexer ID ISC.ANT.UMUX
    • 16 LEDs for diagnosis of reader operation and antenna status
    • GPIO: 2 Optocoupler max. 24 V DC / 20 mA Inputs, 2 Optocoupler max. 24 V DC / 20 mA Outputs and 2 Relays max. 24 V DC / 1 A switching current, 2 A permanent current Outputs
    • RS232, Ethernet, USB (On-The-Go), Wiegand (Scan Mode Interface)
    • US (only) Reader: 902 MHz to 928 MHz
    • Output Power 100 mW to max. 2 W configurable in steps of 100 mW
    • Dimensions 260 mm x 157 mm x 65 mm (10.23 x 6.18 x 2.56 inch)
    • Requires Power Supply and AC Line Cord to function (see above when adding to cart).

    Feig LRU1002 Full Specifications Feig LRU1002 Full Specifications - PDF

    ClearStream RFID Software Specs

    • Stream RFID Tag data to Text, Excel or any ODBC database including SQL Server, MySQL, Oracle, MS Access and more.
    • Fields of data collected include EPC, TID, User Memory, Reader Name, Antenna Name, RSSI, Date/Time, Start Event, Tag Event and Count.
    • RFID Virtual Site Survey allows for testing of tags, and readers in a virtual environment.
    • With the ClearStream Public API users can create their own interface to turn on and off readers.
    • GPIO integration allows the use of light-bars, buttons and motion sensors for with settable alerts/events.

    Learn More about ClearStream RFID >>

    FAQ and Support Resources for the Feig FGE-LRU1002-KIT RFID Kit

    Do I need software for my Feig LRU1002 to read RFID Tags and save data?
    Yes, the Feig LRU1002 does not come with software. Our ClearStream RFID Software included in this kit is a great solution for the Feig LRU1002 and is easy to configure allowing you to read RFID tag data to the data destination of your choice.

    Why Choose PTS?

    We Know Barcoding
    We Know Barcodes & RFID
    PTS is a leading developer of Barcode and RFID software with over 10,000 Customers and Partners Worldwide.
    We Offer Complete Solutions
    We Offer Solutions & Have Integrators
    Our goal is to provide our customers the right solution at an affordable price.
    Learn from Industry Experts
    PTS and Feig Electronics
    PTS partners with Feig Electronics and has direct access to Feig engineers which can work quickly to resolve any unforeseen issues.
