PTS Feig Close Proximity HF RFID Starter Kit w/ ClearStream RFID Software

PTS Feig Close Proximity HF RFID Starter Kit w/ ClearStream RFID Software
Click image for larger view
    Code: FGE-MR102-KIT
    Price: $909.00
    Quantity in Basket: None
    Quantity:

    QUESTIONS?

    Call us at 1-877-640-4152

    877-640-4152

    Send us an email at sales@ptsmobile.com
    Chat with a member of our team

    Live Chat

    Close
    Calculate Shipping: PTS Feig Close Proximity HF RFID Starter Kit w/ ClearStream RFID Software

    Shipping Calculator Shipping Calculator

    The PTS Feig HF RFID Starter Kit is for engineers, end users and integrators who need to design, prototype and deploy HF powered RFID Reading Applications. A primary license of ClearStream RFID software and training is included in the system and can be used to have PTS assist you in creating your first HF RFID applications.

    Common HF RFID Applications

    • Employee Access Control
    • Library Systems
    • Document / File Tracking
    • Animal / Livestock tracking
    • Ticketing
    • Industrial Equipment Tracking

    Why HF RFID vs. UHF RFID

    • Scans through liquids
    • Capable of scanning near carbon substance (many new UHF tags can overcome this issue)
    • Capable of scanning near dielectric and conducting objects (many new UHF tags can overcome this issue)
    • Performs well with tightly packed RFID tagged products (playing cards, folders etc.)
    • Standardized for all regions

    This Starter Kit Includes:

    • 1yr ClearStream RFID Single Reader Subscription* - easy to use software with the flexibility to capture and sync RFID data any way you want.
    • Feig MR102 HF RFID Reader w/ Power Supply
    • Fieg HF Reading Pad with integrated cable

    * Subscription will auto renew after 1 year.

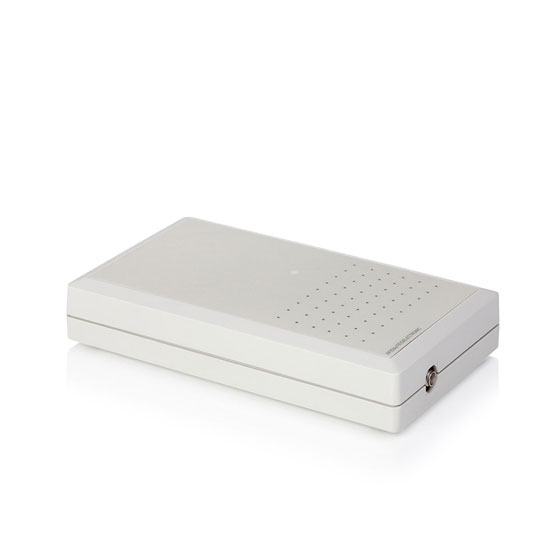

    Feig MR102 Hardware Specs

    • For identification of 13.56 MHz transponders
    • Dimensions 145 x 85 x 31mm / 4.72 x 3.35 x 1.77 inch (WxHxD)
    • Interfaces: Ethernet (TCP/IP), USB or RS232
    • Supply voltage: typical 12/24 V DC or Power over Ethernet
    • Transponders: ISO15693, ISO18000-3-Mode1
    • Anti-collision function

    Feig MR102 Full Specifications Feig MR102 Full Specifications - PDF

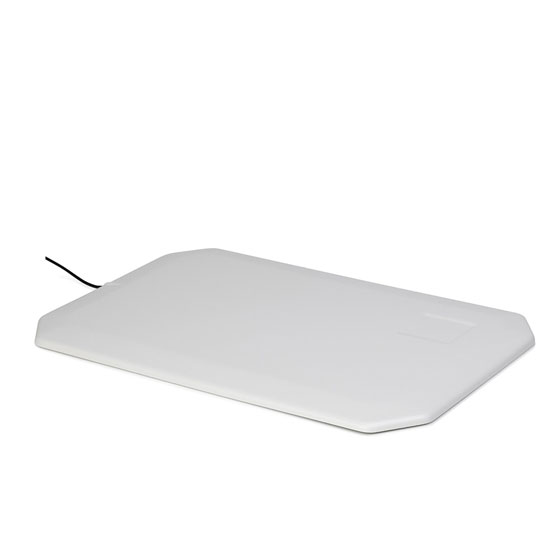

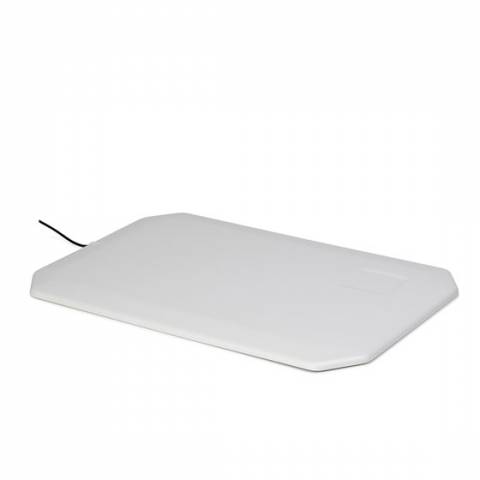

    Feig HF Antenna Pad Hardware Specs

    • Dimensions: 337x237x8,3mm / 13.26 x 9.33 x 0.32 inch (WxHxD)
    • Antenna Connection: RG58 koax-cabel, SMA-connector
    • Works with every Mid Range Reader of the Feig product range with a maximum transmitting power of 1W

    HF Pad Antenna Full Specifications HF Pad Antenna Full Specifications - PDF

    ClearStream RFID Software Specs

    • Stream HF RFID Tag data to Text, Excel or any ODBC database including SQL Server, MySQL, Oracle, MS Access and more.
    • Fields of data collected include EPC, TID, User Memory, Reader Name, Antenna Name, RSSI, Date/Time, Start Event, Tag Event and Count.
    • RFID Virtual Site Survey allows for testing of tags, and readers in a virtual environment.
    • With the ClearStream Public API users can create their own interface to turn on and off readers.
    • GPIO integration allows the use of light-bars, buttons and motion sensors for with settable alerts/events.

    Learn More about ClearStream RFID >>

    FAQ and Support Resources for the Feig FGE-MR102-KIT RFID Kit

    Do I need software for my Feig MR102 to read HF RFID Tags and save data?
    Yes, the Feig MR102 does not come with software. Our ClearStream RFID Software included in this kit is a great solution for the Feig MR102 and is easy to configure allowing you to read HF RFID tag data to the data destination of your choice.

    Why HF RFID vs. UHF RFID

    • Scans through liquids
    • Capable of scanning near carbon substance (many new UHF tags can overcome this issue)
    • Capable of scanning near dielectric and conducting objects (many new UHF tags can overcome this issue)
    • Performs well with tightly packed RFID tagged products (playing cards, folders etc.)
    • Standardized for all regions

    Why Choose PTS?

    We Know Barcoding
    We Know Barcodes & RFID
    PTS is a leading developer of Barcode and RFID software with over 10,000 Customers and Partners Worldwide.
    We Offer Complete Solutions
    We Offer Solutions & Have Integrators
    Our goal is to provide our customers the right solution at an affordable price.
    Learn from Industry Experts
    PTS and Feig Electronics
    PTS partners with Feig Electronics and has direct access to Feig engineers which can work quickly to resolve any unforeseen issues.
