PTS Feig UHF Mid Range RFID Reader Kit
SKU: FGE-MRU102-KIT
PTS Feig UHF Mid Range RFID Reader Kit
Product Description
A nifty encapsulated RFID Reading System with a low profile that works great on a single workstation or desk.
The PTS Feig UHF MID RANGE READER RFID kit is the right choice for an easy to set-up, low profile option to track items within a short read range. Perfect for desktop or workstation applications. The MRU102 also has three switchable antenna outputs for different kinds of applications.
The Feig MRU102-PoE Reader is Simple to Install
Unlike most industrial RFID systems, the MRU102 can be set up in under 10 minutes.
Simply set the light weight reader onto a desk or workstation (mounting sets are available) and plug in an Ethernet cable for power and communication.
The MRU102 eliminates the need for multiple antennas to be mounted and multiple wires to be run.
The MRU102 Looks Good
Too often our customers love how RFID works but can't get approval because the solution doesn't look nice enough for their office environment.
Watch our video and you will see that the MRU102 eliminates that problem.
With ClearStream you can add RFID Data into Most Software Systems
ClearStream RFID enables the MRU102 kit to integrate the data it captures into any pre-existing database or software system ranging from SQL Server, Oracle, MySQL, Access or even MS Excel.
NO programming is necessary to integrate RFID data streaming directly into your system.

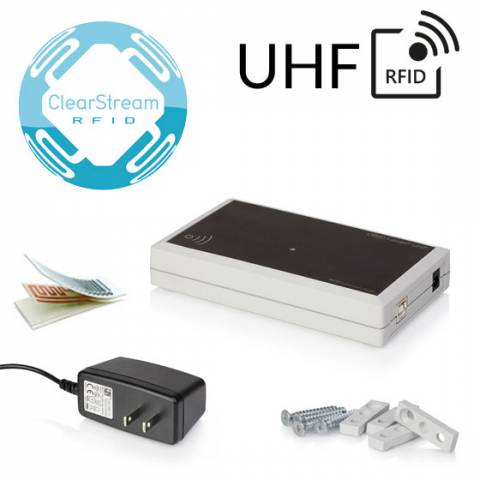

This Starter Kit Includes:
- 1yr ClearStream RFID Single Reader Subscription* - easy to use software with the flexibility to capture and sync RFID data any way you want.
- Feig MRU102-PoE UHF RFID Reader - The modern designed reader with an integrated antenna.
- Power Supply and Mounting hardware
- Choice of Sample Tag Pack
* Subscription will auto renew after 1 year.
This is a Non returnable item and is final sale unless defective. Please contact us if you have questions before purchasing.
Feig MRU102 Hardware Specs
- 3 switchable Antenna outputs (SMA Female) and 1 integrated Antenna (also suitable for communication with near field transponder) for different kinds of applications
- Supports ISO Host Mode, Buffered Read Mode, Notification Mode
- EPC Class1 Gen2
- Ethernet port supports PoE
- US (only) Reader: 902 MHz to 928 MHz
- Output Power 50 mW to 500 mW, configurable
- Read range of up to 4m in combination with the UHF-Antenna ID ISC.ANT.U270
- Dimensions 145 mm x 85 mm x 27 mm (5.71 x 3.35 x 1.06 inch)
ClearStream RFID Software Specs
- Stream RFID Tag data to Text, Excel or any ODBC database including SQL Server, MySQL, Oracle, MS Access and more.
- Fields of data collected include EPC, TID, User Memory, Reader Name, Antenna Name, RSSI, Date/Time, Start Event, Tag Event and Count.
- RFID Virtual Site Survey allows for testing of tags, and readers in a virtual environment.
- With the ClearStream WEB API, users can create their own interface to turn on and off readers and see data.
- GPIO integration allows the use of light-bars, buttons and motion sensors for with settable alerts/events.
FAQ and Support Resources for the Feig FGE-MRU102-KIT
Do I need software for my Feig MRU102 to read RFID Tags and save data?
Yes, the Feig MRU102 does not come with software.
Our ClearStream RFID Software included in this kit is a great solution for the Feig MRU102 and is easy to configure allowing you to read RFID tag data to the data destination of your choice.
