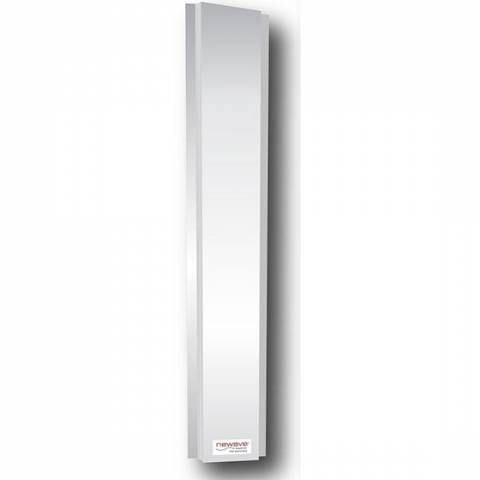

NeWave N5-IG Omni-Directional 5' NSS Wave Antenna - Improved Ground Plane

NeWave N5-IG Omni-Directional 5' NSS Wave Antenna - Improved Ground Plane
Click image for larger view
    Code: N5-IG
    Price: $355.04 - Add to Cart for Today's Low Price!
    Quantity in Basket: None


    Call us at 1-877-640-4152


    Send us an email at
    Chat with a member of our team

    Live Chat

    Calculate Shipping: NeWave N5-IG Omni-Directional 5' NSS Wave Antenna - Improved Ground Plane
    Shipping Calculator Shipping Calculator

    In the manufacturing and logistics field, misplacing items and missing RFID Tag reads can be costly to a business. That's why you need an RFID Antenna with the ability to read tags at a highly consistent level so that every tag is read. The NeWave N5-IG answers this challenge, with the innovative Wave Antenna. When placing 2 antennas opposite one another, the Wave Antenna emits 3 frequencies on each side in a wave-like pattern, which covers the entire designated area, as opposed to the cone frequency emitted from standard Patch Antennas, which will need up to 5 antennas and may overshoot the designated read range needed.

    The Improved Ground Plane is an aesthetic update with trim around the edges to hide the metal foil and is recommended for environments that are customer facing.

    Complete Fixed RFID Kits Available Here with ClearStream RFID Software >>

    Find RFID Tags to use with your Fixed RFID Readers >>

    Note: Requires cable for connection to reader. Please see Add Ons tab.

    NeWave N5-IG Antenna Specifications

    • Freq. Range: 902-928 MHz
    • Gain: 4.5 dBi
    • Polarization: Multi-Linear Polarization
    • H-Plane Beamwidth: 360°
    • E-Plane Beamwidth: 360°
    • User Defined Zone Coverage Range: 2x2x2 feet to 10x10x10 feet
    • Dimensions: 61 in. L x 9 in. W x 1.5 in. D
    • Connector: TNC Reverse Polarity
    • Weight: 3 lbs./1.4 kg
    • Casing: UV Stable ASA, White

    Fixed RFID Antenna Datasheet Wave Antenna Datasheet - PDF
