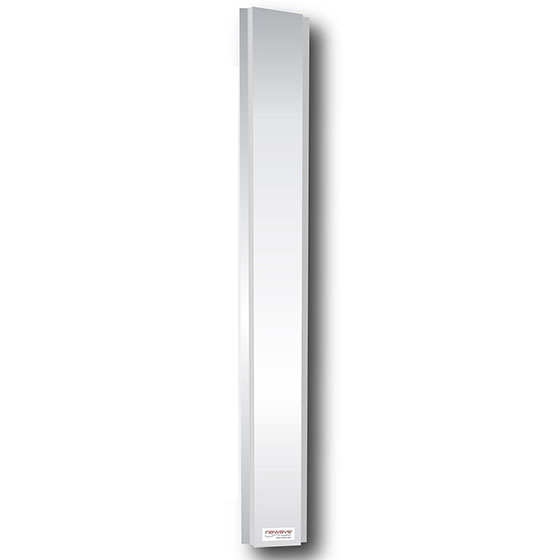

NeWave N7 Omni-Directional 7' NSS Wave Antenna
SKU: N7
NeWave N7 Omni-Directional 7' NSS Wave Antenna
Product Description
In the manufacturing and logistics field, misplacing items and missing RFID Tag reads can be costly to a business. That's why you need an RFID Antenna with the ability to read tags at a highly consistent level so that every tag is read. The NeWave N7 answers this challenge, with the innovative Wave Antenna. When placing 2 antennas opposite one another, the Wave Antenna emits 3 frequencies on each side in a wave-like pattern, which covers the entire designated area, as opposed to the cone frequency emitted from standard Patch Antennas, which will need up to 5 antennas and may overshoot the designated read range needed.
Complete Fixed RFID Kits Available Here with ClearStream RFID Software >>
Find RFID Tags to use with your Fixed RFID Readers >>
Note: Requires cable for connection to reader. Please see Add Ons tab.
Please note all Wave Antennas are NON-CANCELABLE / NON-RETURNABLE.
NeWave N7 Barcode Terminal Features
- Freq. Range: 902-928 MHz
- Gain: 5.5 dBi
- Polarization: Multi-Linear Polarization
- H-Plane Beamwidth: 360°
- E-Plane Beamwidth: 360°
- User Defined Zone Coverage Range: 2x2x2 feet to 10x10x10 feet
- Dimensions: 87 in. L x 9 in. W x 1.5 in. D
- Connector: TNC Reverse Polarity
- Weight: 4 lbs./1.8 kg
- Casing: UV Stable ASA, White
