TSL 2128P-AS1 2128P Long Range RFID Reader w/ 2D Scanner

TSL 2128P-AS1 2128P Long Range RFID Reader w/ 2D Scanner
Click image for larger view
    Code: 2128P-AS1
    Price: $1,517.23
    Quantity in Basket: None

    TSL 2128P - No Display, Circular Polarized RFID Antenna, TSL 2D Custom Scan Engine, No OS , Bluetooth 4.2, No Memory, No camera, No Keypad.


    Call us at 1-877-640-4152


    Send us an email at sales@ptsmobile.com
    Chat with a member of our team

    Live Chat

    Calculate Shipping: TSL 2128P-AS1 2128P Long Range RFID Reader w/ 2D Scanner
    Shipping Calculator Shipping Calculator

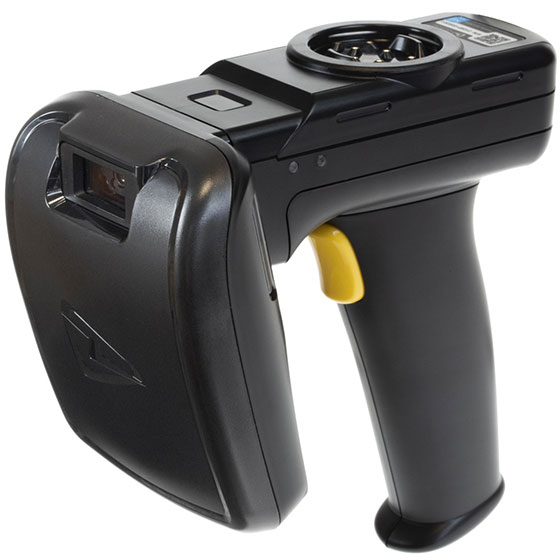

    The TSL 2128P-AS1 Long Range UHF Mobile RFID Sled builds upon the 2128 UHF Reader by including a larger, fixed High Gain antenna for up to 9 m (29.5 ft) of read range. As per the 2128 UHF Reader, the patented TSL ePop-Loq connector allows data and charge connections to be passed from the reader to an attached device, such as a smartphone or handheld terminal. The unique ePop-Loq system is also designed to safely separate when the reader is subject to large impacts, such as when dropped.

    The 2128P UHF RFID Sled supports both Bluetooth Classic as well as Bluetooth Low Energy (BLE). The reader can be operated in a Serial Port Profile (SPP) or in a Human Interface Device mode (HID), as well as supporting iApp2 for Apple iOS devices. The reader also supports an automatic re-connect mode for both Android and Apple devices.

    What's Included:

    • TSL 2128P Long Range RFID Sled w/ 2D Barcode Scanner
    • 2400 mAh Lithium Polymer Battery

    Note: The TSL 2128P RFID Sled Includes a 1D/2D Barcode Scanner.

    TSL 2128P-AS1 Barcode Terminal Features

    • Frequency Range US: 902-928MHz; 0 - 30 dBm (region dependant)+ 4.0 dBiC Antenna
    • Standards Supported: EPC Class 1 Gen 2
    • Nominal Read Range: ~29.5 ft / ~9 m
    • Right Hand Circularly Polarized Antenna
    • 150-degree forward facing Read Field
    • TSL custom 2D Barcode Scan Engine module.
    • Dimensions: 6.2 in. H x 3.8 in. W x 6.7 in. L
    • Weight: 16.4oz / 465g
    • Drop Spec: Multiple drops to concrete: 4 ft./1.2 m ambient, 3ft / 0.9m across the operating temperature range, IP54 Sealing
    • Bluetooth Version 4.2, USB connection to handheld terminal via ePop-Loq cases (separate purchase)

    TSL 2128 Specifications 2128 Spec Sheet

    Protect Your TSL 2128P-AS1

    Your TSL 2128P mobile RFID reader is warrantied against defects in workmanship and materials for a period of one year (12 months) from date of shipment, provided the product remains unmodified and is operated under normal and proper conditions.

    FAQ and Support Resources for the TSL 2128P-AS1

    What devices does the 2128 RFID Sled work with?

    The 2128 currently supports the Zebra TC20/TC25 and TC52/TC57 with the ePop-Loq adapter case along with most Android and iOS devices using a Bluetooth Connection.

    What is needed to use the TSL 2128 sled to read RFID tags?

    You will need a compatible device as mentioned above and software that is capable of collecting and storing RFID data. TracerPlus is RFID enabled data collection software allowing you to create RFID ready applications in minutes.

    TSL 2128P Quick Start Guide 2128P Quick Start Guide

    TSL 2128P User Guide 2128P User Guide
