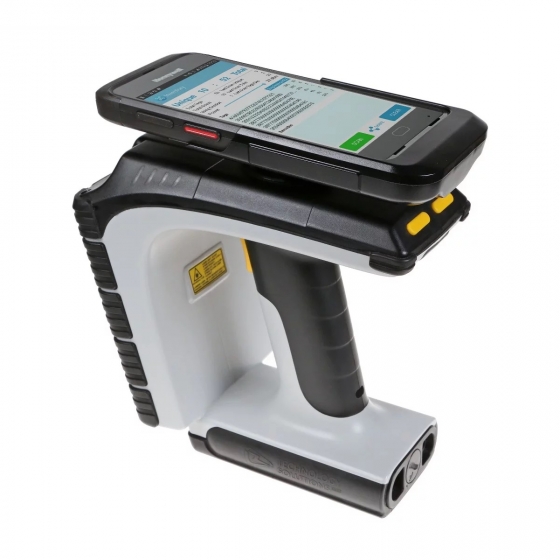

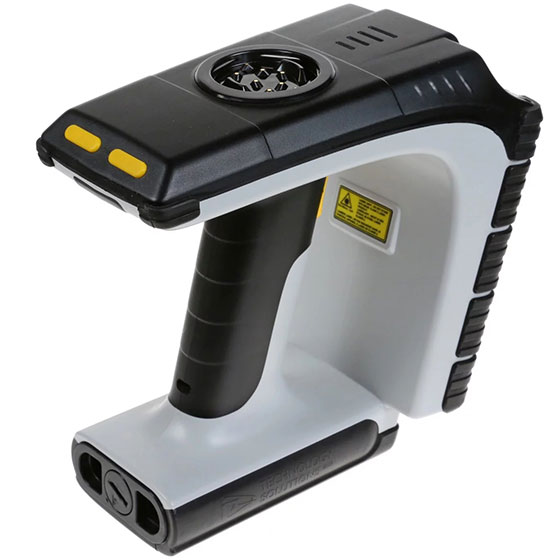

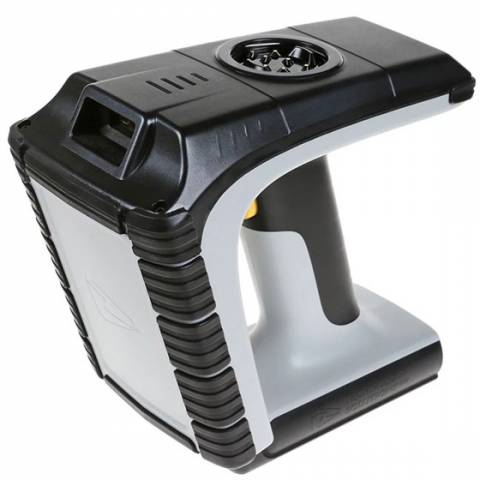

TSL 2166-AS1 2166 Long Range Ultra-Rugged RFID Reader
Code: 2166-AS1
Price: $2,210.12
Quantity in Basket:
None
The TSL 2166-AS1 Long Range UHF Mobile RFID Sled features a fixed High Gain antenna for up to 9 m (29.5 ft) of read range. As per the 2128 UHF Reader, the patented TSL ePop-Loq connector allows data and charge connections to be passed from the reader to an attached device, such as a smartphone or handheld terminal. The unique ePop-Loq system is also designed to safely separate when the reader is subject to large impacts, such as when dropped. The 2166 is the most Ultra-Rugged version of the TSL Readers to-date, being able to withstand drops of up to 6 feet, and able to operate in extreme climates.
The 2166 UHF RFID Sled supports both Bluetooth Classic as well as Bluetooth Low Energy (BLE). The reader can be operated in a Serial Port Profile (SPP) or in a Human Interface Device mode (HID), as well as supporting iApp2 for Apple iOS devices. The reader also supports an automatic re-connect mode for both Android and Apple devices.
What's Included:
- TSL 2166 Long Range RFID Sled w/ integrated TSL Custom 2D barcode scanner
- 2950 mAh Lithium Polymer Battery
Note: Requires cradle (1166-CRD-01-KIT) and US Plug (IEC-1x8M-US) for charging, see Accessories tab.
TSL 2166-AS1 Barcode Terminal Features
- Frequency Range US: 902-928MHz; 0 - 30 dBm (region dependant)+ 4.0 dBiC Antenna
- Standards Supported: EPC Class 1 Gen 2
- Nominal Read Range: ~29.5 ft / ~9 m
- Right Hand Circularly Polarized Antenna
- 110-degree forward facing Read Field
- TSL custom 2D Barcode Scan Engine module.
- Dimensions: 6.8 in. H x 4.2 in. W x 7.0 in. L
- Weight: 30.5oz / 865g
- Drop Spec: Multiple drops to concrete: 5.9 ft./1.8 m across the operating temperature range, IP67 Sealing
- Bluetooth Version 4.2, USB connection to handheld terminal via ePop-Loq cases (separate purchase)
Protect Your TSL 2166-AS1
Your TSL 2166 mobile RFID reader is warranted against manufacturing defects for a period of one year (12 months) from date of shipment, provided the product remains unmodified and is operated under normal and proper conditions.
FAQ and Support Resources for the TSL 2166-AS1
What devices does the 2166 RFID Sled work with?
The 2166 currently supports the Zebra TC20/TC25, TC52/TC57, and Janam XT30/XT40 with the ePop-Loq adapter case along with most Android and iOS devices using a Bluetooth Connection.
What is needed to use the TSL 2166 sled to read RFID tags?
You will need a compatible device as mentioned above and software that is capable of collecting and storing RFID data. TracerPlus is RFID enabled data collection software allowing you to create RFID ready applications in minutes.
