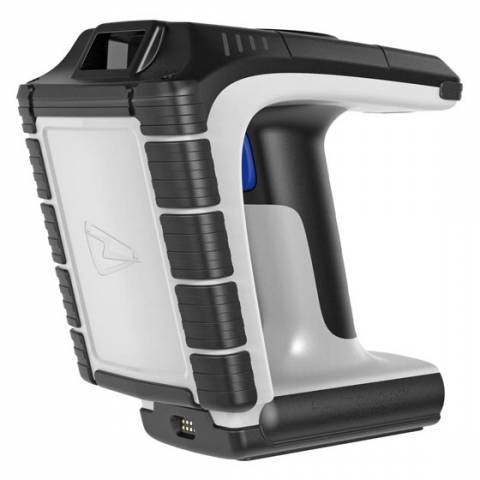

TSL 3166-AX1 3166 Long Range Ultra-Rugged RFID Reader
Code: 3166-AX1-US
Price: $1,675.97
Quantity in Basket:
None
The TSL 3166-AX1-US Long Range UHF Mobile RFID Reader boasts TSL's latest hardware innovations and performance improvements, in a more efficient reader with an all-day battery life. Using the latest generation of Impinj silicon, read rates have been boosted up to 1200 tags per second. Multiple tag operations per tag are possible during an inventory scan: read multiple areas of each tag, write to, or even lock the tag. On reader deduplication prevents overwhelming the connected host with information.
The 3166 features a fixed High Gain antenna for up to 9 m (29.5 ft) of read range. As per the 2166 UHF Reader, the patented TSL ePop-Loq connector allows data and charge connections to be passed from the reader to an attached device, such as a smartphone or handheld terminal. The unique ePop-Loq system is also designed to safely separate when the reader is subject to large impacts, such as when dropped. The 3166 is the most Ultra-Rugged version of the TSL Readers to-date, being able to withstand drops of up to 6 feet, and able to operate in extreme climates.
What's Included:
- TSL 3166 Long Range RFID Sled
- 2950 mAh Lithium Polymer Battery
Note: Requires cradle (1166-CRD-01-KIT) and US Plug (IEC-1x8M-US) for charging, see Accessories tab. This TSL 3166 RFID Sled DOES NOT HAVE A BARCODE SCANNER.
TSL 3166-AX1-US Barcode Terminal Features
- Frequency Range US: 902-928MHz; 0 - 30 dBm (region dependant)+ 4.0 dBiC Antenna
- Standards Supported: EPC Class 1 Gen 2 and Class1 Gen2v2
- Nominal Read Range: ~29.5 ft / ~9 m
- Right Hand Circularly Polarized Antenna
- 110-degree forward facing Read Field
- Dimensions: 6.8 in. H x 4.2 in. W x 7.0 in. L
- Weight: 30.5oz / 865g
- Drop Spec: Multiple drops to concrete: 5.9 ft./1.8 m across the operating temperature range, IP67 Sealing
- Bluetooth v4.2 compliant (v5.1 compatible), USB connection to handheld terminal via ePop-Loq cases (separate purchase)
Protect Your TSL 3166-AX1-US
Your TSL 3166 mobile RFID reader is warranted against manufacturing defects for a period of one year (12 months) from date of shipment, provided the product remains unmodified and is operated under normal and proper conditions.
FAQ and Support Resources for the TSL 3166-AX1-US
What devices does the 3166 RFID Sled work with?
The 3166 currently supports the Zebra TC20/TC25, TC52/TC57, and Janam XT30/XT40 with the ePop-Loq adapter case along with most Android and iOS devices using a Bluetooth Connection.
What is needed to use the TSL 3166 sled to read RFID tags?
You will need a compatible device as mentioned above and software that is capable of collecting and storing RFID data. TracerPlus is RFID enabled data collection software allowing you to create RFID ready applications in minutes.
