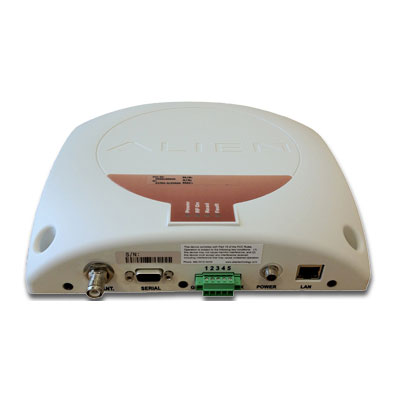

Alien ALR-9650 RFID Reader w/ Integrated Antenna
SKU: ALR-9650
Alien ALR-9650 RFID Reader w/ Integrated Antenna
Product Description
The Alien ALR-9650 combines a PoE ready RFID reader and high performance circular polarized antenna into a single, simple-to-use, inexpensive and low-profile RFID solution. With a second antenna port, you can connect an external antenna for applications requring 2 antennas.
Complete Fixed RFID Kits Available Here with ClearStream RFID Software >>
With a small footprint, the ALR-9650 takes up little space, at only 9 inches square it uses less than half the real-estate of a typical reader and antenna system. Combined with the elimination of messy cables for antennas and power, the ALR-9650 easily fits into a variety of tight spaces and enables neat and tidy placement when it is visible to consumers or the general public.
Find RFID Tags to use with your ALR-9650 Reader >>
What's Included:
- Alien ALR-9650 Reader with Integrated Antenna, PoE capable.
- PoE Power Supply
- US Power Cord
- 6' Ethernet Cable
Note: See Antennas and Cables tab for additional antennas.
Alien ALR-9650 Barcode Terminal Features
- Antennas:One internal, one external port with RTNC connector
- 24 VDC supplied via an AC/DC power converter or POE (IEEE 802.3af).
- RFID Tag Protocols: EPC Gen 2; ISO 18000-6c
- Frequency (UHF Band): US (only) Reader: 902.75 MHz - 927.25 MHz
- RF Power: Max; 4 watts EIRP with internal antenna
- LAN TCPI/IP (RJ-45), RS-232 (DB-9 F)
- General Purpose I/O: 2 inputs, 2 outputs, TTL compatible
- Dimensions: (L) 9.13" x (W) 9.0" x (D) 2.0"
- Operating Temperature: -20°C to +55°C (-4°F to +131°F)
FAQ and Support Resources for the Alien ALR-9650
Do I need software for my Alien 9650 Reader to read RFID Tags and save data?
Yes, the Alien 9650 Reader does not come with software.
Our ClearStream RFID Software is a great solution for the Alien 9650 Reader and is easy to configure allowing you to read RFID tag data to the data destination of your choice.
Bundled Starter Kits are also available with Hardware and software.
