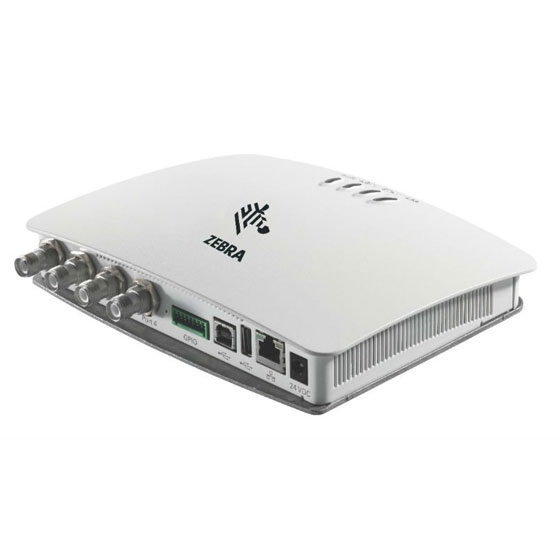

Zebra FX7500-42320A56-US 4 Port RFID Reader, No USB Host

Zebra FX7500-42320A56-US 4 Port RFID Reader, No USB Host
Click image for larger view
    Code: FX7500-42320A56-US
    Price: $1,050.07
    Quantity in Basket: None
    Add ClearStream:
    Monthly Subscription
    Yearly Subscription
    None
      Add AC Power Supply for Reader
      Add AC Line Cord for Power Supply
      Add 3 Year Zebra OneCare Essential Service
    Quantity:

    QUESTIONS?

    Call us at 1-877-640-4152

    877-640-4152

    Send us an email at sales@ptsmobile.com
    Chat with a member of our team

    Live Chat

    Begin your RFID tag streaming journey with ClearStream today.

    Close
    Calculate Shipping: Zebra FX7500-42320A56-US 4 Port RFID Reader, No USB Host

    Shipping Calculator Shipping Calculator

    RFID begins with the radio, so that's where Zebra began with its FX7500 4 Port Fixed RFID Reader. A new RFID radio technology was created, designed from the ground up for faster, more accurate read rates and more consistent performance even in challenging environments. This software-based radio technology effectively future-proofs your RFID investment by delivering flexibility to implement future upgrades and improvements with minimal investment. This radio was then paired with a new, more flexible Linux-based network architecture that integrates the tools and open-standard interfaces you need for fast, easy deployment with your RFID and back-end applications.

    Complete Fixed RFID Kits Available Here with ClearStream RFID Software >>

    The result is a fixed RFID reader that sets a new performance standard, delivering peak performance at all times with excellent reader sensitivity and better interference rejection, at a lower cost per read point. It simply works better and it costs less.

    Find RFID Tags to use with your FX7500 Reader >>

    What's Included:

    • Zebra FX7500 Fixed RFID Reader with 4 Antenna Ports and POE, NO USB HOST. Power supply not required if connecting to a POE enabled switch however would require external power to utilize GPIO. Users without POE will need to order Power Supply PWR-BGA24V78W1WW and Line Cord 23844-00-00R which can also power the GPIO ports.
    • Mounting Bracket

    Note: Requires read antennas and cables to fully function. Please see Antennas and Cables tab.

    Zebra FX7500-42320A56-US Features

    • 4 monostatic ports (Reverse Polarity TNC)
    • Linux based OS with 512 MB Flash; 256 MB DRAM
    • Multicolor LEDs: Power, Activity, Status and Applications
    • GPIO: 2 inputs, 3 outputs, optically isolated
    • 10/100 BaseT Ethernet (RJ45) w/ POE support; USB Client (USB Type B), USB Host Port (Type A)
    • Support for POE and POE+ (Power Over Ethernet)
    • US (only) Reader: 902 MHz to 928 MHz
    • Small Footprint and Rugged Construction
    • LLRP Host Interface Protocol
    • Requires Power Supply and AC Line Cord to use GPIO Ports (see above when adding to cart)
    • This model does NOT have USB Host Port functionality

    Zebra FX7500 Specifications Zebra FX7500 Full Specifications - PDF

    Protect Your Zebra FX7500-42320A56-US

    Your Zebra FX7500 Fixed RFID Reader comes with a standard 1 year warranty that protects you from manufacturer defects only. That does not cover any damage you do to the reader as accidents can happen. That is where Zebra OneCare Essential Service comes in. This service covers your Zebra FX7500 for 3 years with hassle free repair service keeping your RFID readers running at peak performance.

    3 Year Zebra OneCare Essential Service

    If you wish to add this Warranty, Select the options above the "ADD TO CART" button.

    FAQ and Support Resources for the Zebra FX7500-42320A56-US

    Do I need software for my Zebra FX7500 to read RFID Tags and save data?
    Yes, the Zebra FX7500 does not come with software. Our ClearStream RFID Software is a great solution for the Zebra FX7500 and is easy to configure allowing you to read RFID tag data to the data destination of your choice. Bundled Kits are also available with Hardware and software.

    Zebra FX7500 Integrator Guide Zebra FX7500 Integrator Guide

    Zebra FX7500 Quick Start Guide Zebra FX7500 Quick Start Guide
