RFMAX HDMNT-150MM Heavy Duty RFID Antenna Mount
SKU: HDMNT-150MM
RFMAX HDMNT-150MM Heavy Duty RFID Antenna Mount
Product Description

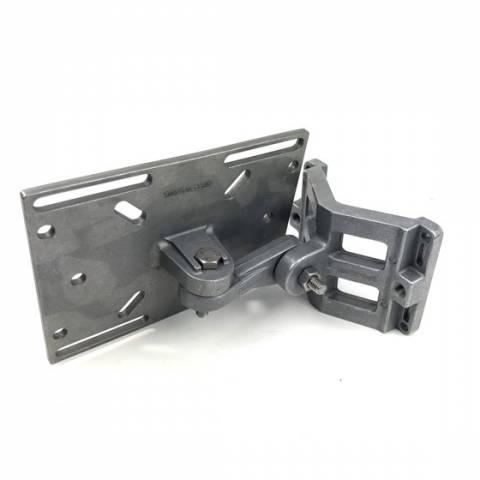

The HDMNT-150MM is a heavy duty die-cast aluminum mounting bracket for use with Zebra AN480, AN440, and Impinj IPJ-A1000, IPJ-A1001 RFID Antennas.
RFMAX HDMNT-150MM Barcode Terminal Features
THE ONE AND ONLY heavy-duty mounting bracket designed to mount panel antennas from Zebra, Impinj or MIST / Juniper. The unit easily articulates in both the vertical and horizontal plane and is appropriate for indoor or outdoor mounting of any device up to 40 lbs.
- Material: Die Cast Aluminum
- Dimensions: 150mm L x 150mm W
- Mount Style: Wall, Pole, Uni-Strut, or Bollard
- Weight: Supports up to 40 lbs
- Mounting: Comes with hardware to accommodate mounting to a wall, uni-strut or pole with diameter of 1-3 inches. You can also use "hose clamps" or "worm gear clamps" to attach the mount to a pole or bollard up to 12 inches in diameter.
What's Included
- Vesa plate
- Wall Mount
- Pole Mount
- Hardware for wall, or a pole with diameter of 1-3 inches
Datasheet - PDF
Note: Compatible with: Zebra RFID Antennas AN440, AN480 (This mount REPLACES Zebra BRKT-70661-01R and BRKT-70662-01R); Impinj RFID Antennas IPJ-A1000, IPJ-A1001.
