PTS HF RFID Starter Kit For Document and Book Tracking

PTS HF RFID Starter Kit For Document and Book Tracking
Click image for larger view
    Code: PTS-HFRFID-KIT
    Price: $6,300.00
    Quantity in Basket: None
    Choose Service:
    1 Year Extended Warranty, No Print Head Coverage
    2 Year Extended Warranty, No Print Head Coverage
    1 Year Extended Warranty, Print Head Coverage
    Manufacturer's Warranty
    Quantity:

    QUESTIONS?

    Call us at 1-877-640-4152

    1-877-640-4152

    Send us an email at sales@ptsmobile.com
    Chat with a member of our team

    Live Chat

    Close
    Calculate Shipping: PTS HF RFID Starter Kit For Document and Book Tracking

    Shipping Calculator Shipping Calculator

    When you need to have the most reliable, close range, RFID scanning application for tracking items that are traditionally stacked or piled on top of each other we recommend the HF RFID Starter Kit. The kit includes everything you need to start tracking books, folders and documents. Powered by ClearStream RFID software you can STREAM data to your pre-existing database, software system or worksheet. This kit turns any system you have DB access to into a powerful RFID enabled, real time solution that can be configured to handle your unique check in, check out and tracking needs.

    Who does the kit work for:

    • Law Offices
    • Schools and Universities
    • Courts
    • Doctors Offices

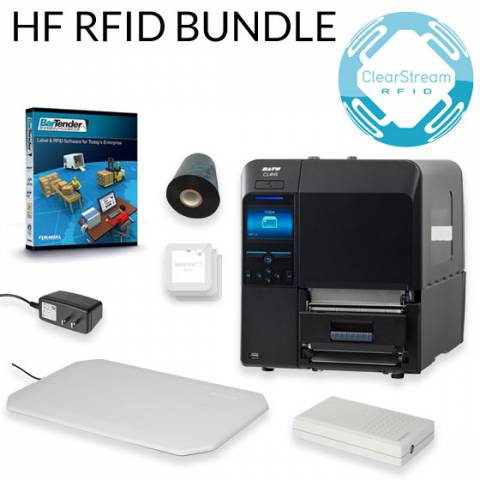

    What's Included:

    SATO CL4NX Printer Specs:

    • Resolution: 203 dpi
    • Print Width: 4.1"
    • Print Speed: 10 ips
    • Connectivity: Ethernet, USB, Serial, Bluetooth, Parallel, Wi-Fi
    • Included Options: Dispenser / Rewinder
    • 3.5" Full Color CD

    SATO CL4NX Datasheet SATO CL4NX Datasheet - PDF

    Feig MR102 Hardware Specs

    • For identification of 13.56 MHz transponders
    • Dimensions 145 x 85 x 31mm / 4.72 x 3.35 x 1.77 inch (WxHxD)
    • Interfaces: Ethernet (TCP/IP), USB or RS232
    • Supply voltage: typical 12/24 V DC or Power over Ethernet

    Feig MR102 Full Specifications Feig MR102 Full Specifications - PDF

    Feig HF Antenna Pad Hardware Specs

    • Dimensions: 337x237x8,3mm / 13.26 x 9.33 x 0.32 inch (WxHxD)
    • Antenna Connection: RG58 koax-cabel, SMA-connector

    HF Pad Antenna Full Specifications HF Pad Antenna Full Specifications - PDF

    ClearStream RFID Software Specs

    • Stream HF RFID Tag data to Text, Excel or any ODBC database including SQL Server, MySQL, Oracle, MS Access and more.
    • Fields of data collected include EPC, TID, User Memory, Reader Name, Antenna Name, RSSI, Date/Time, Start Event, Tag Event and Count.
    • RFID Virtual Site Survey allows for testing of tags, and readers in a virtual environment.
    • With the ClearStream Public API users can create their own interface to turn on and off readers.
    • GPIO integration allows the use of light-bars, buttons and motion sensors for with settable alerts/events.

    Learn More about ClearStream RFID >>

    Bartender Software Specs:

    • Easy to Learn, Easy to Use
    • Compliance Labels and Ready-to-Print Formats
    • Exceptional Font Control
    • Advanced, Custom Serialization
    • Import and Export Graphics
    • Native and HTML-Compatible Data-Entry Forms
    • Web Browser Printing Option
    • Add Your Own Features using Visual Basic Script

    Bartender Specifications Bartender Specifications - PDF

    Protect Your Feig, SATO PTS-HFRFID-KIT

    Your FEIG MR102 HF RFID Reader comes with a 1 year warranty effective from date of shipment. A limited lifetime warranty is offered when the product is registered on the Feig website.

    Your SATO CL4NX printer comes with a standard 1 year warranty that protects you from manufacturer defects only. That does not cover accidental damage you do to the printer. SATO Direct-to-Factory Extended Warranty Depot Service extends your CL4NX printer's warranty by the duration purchased offering unlimited depot repairs for the life of the contract.

    SATO CL4NX 1 Year Extended Warranty NO Printhead Coverage

    SATO CL4NX 2 Year Extended Warranty NO Printhead Coverage

    SATO CL4NX 1 Year Extended Warranty WITH Printhead Coverage

    If you wish to add this service, Check the option above the "ADD TO CART" button.

    FAQ and Support Resources for the Feig, SATO PTS-HFRFID-KIT

    Why HF RFID vs. UHF RFID

    • Scans through liquids
    • Capable of scanning near carbon substance (many new UHF tags can overcome this issue)
    • Capable of scanning near dielectric and conducting objects (many new UHF tags can overcome this issue)
    • Performs well with tightly packed RFID tagged products (playing cards, folders etc.)
    • Standardized for all regions

    SATO CL4NX User Guide SATO CL4NX User Guide

    SATO CL4NX Quick Reference Guide SATO CL4NX Quick Reference Guide

    SATO CL4NX Programming Guide SATO CL4NX Programming Guide

    SATO CL4NX HF RFID Configuration Guide SATO CL4NX HF RFID Configuration Guide

    SATO CL4NX HF RFID Inlay Configuration Guide SATO CL4NX HF RFID Inlay Configuration Guide

    Support Resources for Bartender software on SeagullScientific.com >>
