PTS Zebra FX9600 UHF RFID Starter Kit w/ ClearStream RFID Software

PTS Zebra FX9600 UHF RFID Starter Kit w/ ClearStream RFID Software
Click image for larger view
    Code: ZEB-FX9600-KIT
    Price: $5,438.00
    Quantity in Basket: None
    Choose Model:
    Cable Lengths:
      Upgrade from 4 to 8 Antennas +$1100.00
      Add RFMAX RFID Power Mapper - $250.00
      Add RFmini RFID Power Indicator - $150.00

    Note: Pricing above is for the first system, each additional system is $3,058.00 plus any add-ons you choose. Discounts will be reflected in the cart.


    Call us at 1-877-640-4152


    Send us an email at
    Chat with a member of our team

    Live Chat

    Calculate Shipping: PTS Zebra FX9600 UHF RFID Starter Kit w/ ClearStream RFID Software
    Shipping Calculator Shipping Calculator

    Everything you need to quickly create an enterprise class Fixed RFID System without programming

    The Zebra FX9600 UHF RFID Starter kit is a scalable RFID System for applications ranging from equipment check in/out to inventory audits. Featuring a best in class Zebra Industrial FX9600 RFID Reader and PTS' own innovative, easy to configure and grow RFID Software, ClearStream RFID, track the information you need and map it back to any pre-existing database, excel sheet or backend system.

    1. Track entire room contents instantly with the touch of a button.
    2. Set up scheduled tasks to do timed audits of critical assets.
    3. Track incoming and outgoing employees and the equipment they are carrying.

    Find RFID Tags to use with your FX9600 Kit >>

    This system features four or eight highly sensitive monostatic RF ports providing exceptionally high RF sensitivity that delivers greater accuracy and longer read ranges. With expanded memory, the FX9600 can support high traffic through products like our ClearStream RFID software included in this kit. The FX9600 supports Wi-Fi/Bluetooth dongles for direct wireless connectivity to Wi-Fi networks and Bluetooth enabled devices. Extremely durable with IP63 sealing protects against damp, dusty environments as well as extreme heat and subzero temperatures.

    This Starter Kit Includes:

    • ClearStream RFID Single Reader License - easy to use software with the flexibility to capture and sync RFID data any way you want.

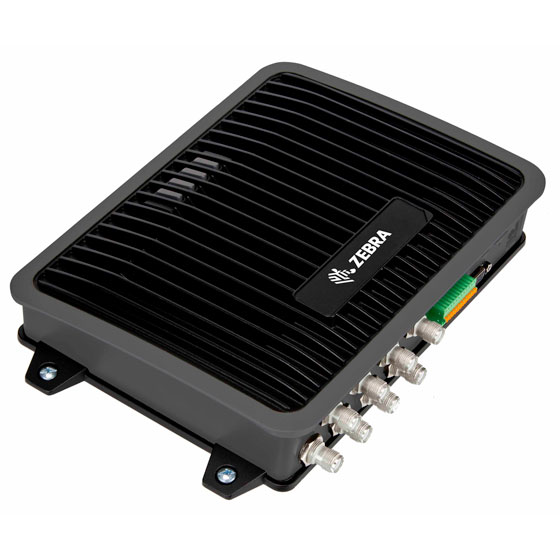

    • Zebra FX9600 RFID Reader (Choose between 4 or 8 antenna ports) - suited for enterprise deployments of all sizes. Featuring power over ethernet, auto discovery, and secure data transmission.
    • Power Supply and US AC Line Cord
    • 4 Zebra AN480 RFID Antennas, Mounting Brackets and Cables
    • 100 3.00" x 1.00" General Purpose RFID Tags
    • 3 Year FX9600 Service Agreement
    • 1 Year ClearStream RFID Software Support Agreement

    Zebra FX9600 Hardware Specs

    • 4 or 8 monostatic ports; (Reverse Polarity TNC)
    • Max Receive Sensitivity: -86 dBm monostatic
    • Air Protocols: ISO 18000-63 (EPC Class 1 Gen 2 V2)
    • Frequency (UHF Band): US (only) Reader: 902 - 928 MHz
    • Transmit Power Output: 0 dBm to +33 dBm (POE+ 802.3at, Universal 24V DC Power Supply), 0 dBm to +31.5 dBm (POE 802.3af)
    • 10/100 BaseT Ethernet (RJ45); USB Host & Client (Type A & B); Serial (DB9)
    • General Purpose I/O: 4 inputs, 4 outputs, optically isolated (Terminal Block)
    • Linux based OS with 512 MB Flash and 256MB DRAM

    Zebra FX9600 Specifications Zebra FX9600 Specifications - PDF

    ClearStream RFID Software Specs

    • Stream RFID Tag data to Text, Excel or any ODBC database including SQL Server, MySQL, Oracle, MS Access and more.
    • Fields of data collected include EPC, TID, User Memory, Reader Name, Antenna Name, RSSI, Date/Time, Start Event, Tag Event and Count.
    • RFID Virtual Site Survey allows for testing of tags, and readers in a virtual environment.
    • With the ClearStream Public API users can create their own interface to turn on and off readers.
    • GPIO integration allows the use of light-bars, buttons and motion sensors for with settable alerts/events.

    Learn More about ClearStream RFID >>

    Protect Your Zebra ZEB-FX9600-KIT RFID Kit

    Your Zebra FX9600 Fixed RFID Reader comes with a standard 1 year warranty that protects you from manufacturer defects only. That does not cover any damage you do to the reader as accidents can happen. That is where Zebra OneCare Select Service comes in. This service covers your Zebra FX9600 for 3 years with hassle free repair service keeping your RFID readers running at peak performance.

    3 Year OneCare Select Service w/ Comprehensive Coverage

    This service is included with this kit.

    FAQ and Support Resources for the Zebra ZEB-FX9600-KIT RFID Kit

    Do I need software for my Zebra FX9600 to read RFID Tags and save data?
    Yes, the Zebra FX9600 does not come with software. Our ClearStream RFID Software included in this kit is a great solution for the Motorola FX9500 and is easy to configure allowing you to read RFID tag data to the data destination of your choice.

    Zebra FX9600 Integrator Guide Zebra FX9600 Integrator Guide

    Zebra FX9600 Quick Start Guide Zebra FX9600 Quick Start Guide

    Zebra FX9600 Quick Start Guide Zebra FX9600 Quick Start Guide

    Using the FX9600 with a Wi-Fi Dongle Using the FX9600 with a Wi-Fi Dongle

    ClearStream RFID User Guide ClearStream RFID User Guide

    ClearStream RFID Quick Start Guide ClearStream RFID Quick Start Guide

    ClearStream Training and Tutorial Videos ClearStream Training and Tutorial Videos

    ClearStream RFID Software Community Support Forum ClearStream RFID Software Community Support Forum
