Times-7 A5010-60003 Slimline RFID Antenna - VESA Mount
SKU: A5010-60003
Times-7 A5010-60003 Slimline RFID Antenna - VESA Mount
Product Description

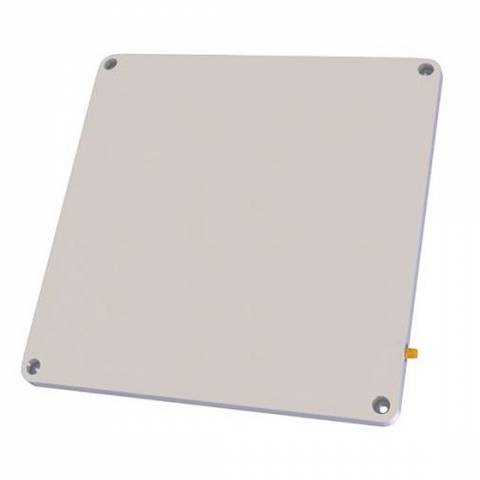

The Times-7 A5010-60003 SlimLine RFID Antenna is the latest and greatest IP67 rated, Circularly Polarized, panel antenna on the RFID market today. It's 10 x 10 inches and is less than 0.55 inches thick, which allows it to be placed in a large variety of locations. In addition, the performance of the unit is excellent, offering 8.5 dBic of gain within the frequency of 902-928 Mhz and is fitted with a fixed, side entry SMA-Female connector.
Complete Fixed RFID Kits Available Here with ClearStream RFID Software >>
The A5010 is a low-profile, circularly polarized antenna for use in passive UHF RFID systems in the 902-928 Mhz FCC band. This antenna offers 68 degrees of beamwidth in both the vertical and horizontal planes as well as an outstanding VSWR of 1.3:1 across the frequency spectrum, in a super low-profile package. In addition, the unit offers superb read ranges of up to 9m (29 ft).
Find RFID Tags to use with your Fixed RFID Readers >>
What's Included:
- A5010-60001 Slim Line Circularly Polarized RFID Antenna with SMA-Female Connector, 100mm VESA Mount
Note: Requires RPTNC Male to Standard SMA Male cable to connect to Zebra and Impinj RFID Readers.
Please note all Times-7 Antennas are NON-CANCELABLE / NON-RETURNABLE.
Times-7 A5010-60003 Barcode Terminal Features
- Freq. Range: 902-928 Mhz | FCC RFID
- Gain: 8.5 dBic
- Front to back ratio: 20db
- Far-field 3dB beamwidth: 68° in both planes
- Operating / Storage Temperature: -20° to +55°C
- Polarity: Right Hand Circular Polarization
- Dimensions: 9.85" x 9.85" x .55"
- Connector: SMA-Female side connector
- Weight: 1.6 lbs
- Mounting: VESA 100mm Stud Mount
