Times-7 A6031-70810 11 x 8.5 inch Circularly Polarized RFID Antenna
SKU: A6031-70810
Times-7 A6031-70810 11 x 8.5 inch Circularly Polarized RFID Antenna
Product Description

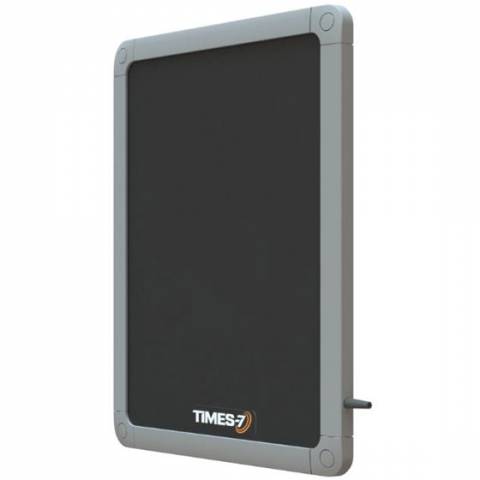

The Times-7 A6031-70810 11x8.5 inch Circularly Polarized RFID Antenna is an ultra-low profile circularly polarized flat panel antenna for UHF RFID applications in customer facing or space constraints environments, where up to 4 m (13 ft) read range performance is required. Similar in size and weight to a Tablet PC, the A6031 can easily blend into an office or retail environment.
Complete Fixed RFID Kits Available Here with ClearStream RFID Software >>
The A6031 is an ultra-low-profile, circularly polarized antenna for use in passive UHF RFID systems in the 902-928 Mhz FCC band. This antenna offers an 80 degrees of beamwidth in both planes, 4 dBic Gain, and a VSWR of 1.4:1 across the frequency spectrum, in a super low-profile package.
Find RFID Tags to use with your Fixed RFID Readers >>
What's Included:
- A6031-70810 Slim Line Circularly Polarized RFID Antenna with SMA-Female Connector
Note: Requires RPTNC Male to RP SMA Male cable to connect to Zebra and Impinj RFID Readers.
Please note all Times-7 Antennas are NON-CANCELABLE / NON-RETURNABLE.
Times-7 A6031-70810 Barcode Terminal Features
- Freq. Range: 902-928 Mhz | FCC RFID
- Gain: 4 dBic
- Front to back ratio: -18db
- Far-field 3dB beamwidth: 80° in both planes
- Operating / Storage Temperature: -20° to +55°C
- Polarity: Right Hand Circular Polarization
- Dimensions: 10.78" x 8.38" x 0.48"
- Connector: SMA female side fly lead (324mm / 12.8")
- Weight: 1.3 lbs
- Mounting: Integrated mounting holes
