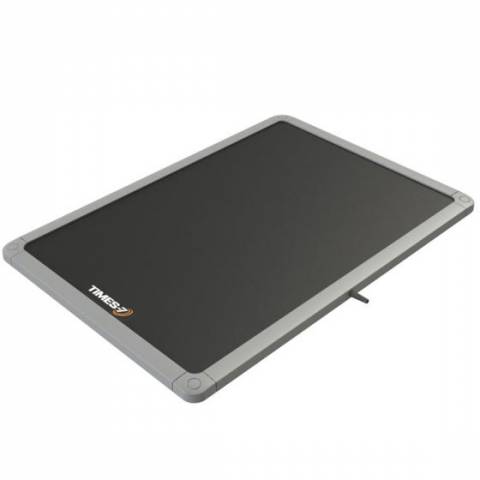

Times7 A6032-70808 16 x 11 inch Circularly Polarized RFID Antenna
Code: A6032-70808
Price: $299.20
Quantity in Basket:
None
The Times-7 A6032-70808 16x11 inch Circularly Polarized RFID Antenna is an ultra-low profile circular polarised flat panel antenna with a total thickness of just 12 mm (0.5 inches) that can be flush wall mounted for asset tracking or used as a slim countertop inventory antenna.
Complete Fixed RFID Kits Available Here with ClearStream RFID Software >>
The A6032 is an ultra-low-profile, circularly polarized antenna for use in passive UHF RFID systems in the 902-928 Mhz FCC band. This antenna offers a 48 degree horizontal plane & an 75 degree vertical plane of beamwidth, 7 dBic Gain, and a VSWR of 1.4:1 across the frequency spectrum, in a super low-profile package.
Find RFID Tags to use with your Fixed RFID Readers >>
What's Included:
- A6032-70808 Slim Line Circularly Polarized RFID Antenna with SMA-Female Connector
Note: Requires RPTNC Male to RP SMA Male cable to connect to Zebra and Impinj RFID Readers.
Please note all Times-7 Antennas are NON-CANCELABLE / NON-RETURNABLE.
Times7 A6032-70808 Antenna Specifications
- Freq. Range: 902-928 Mhz | FCC RFID
- Gain: 7 dBic
- Front to back ratio: -22 db
- Far-field 3dB beamwidth: 48° horizontal plane / 75° vertical plane
- Operating / Storage Temperature: -20° to +55°C
- Polarity: Right Hand Circular Polarization
- Dimensions: 14.96" x 10.74" x 0.48"
- Connector: SMA female side fly lead (324 mm / 12.75")
- Weight: 2.9 lbs
- Mounting: Integrated mounting holes
