Times-7 A6034S-71003 15x15 inch Circularly Polarized SlimLine RFID Antenna
SKU: A6034S-71003
Times-7 A6034S-71003 15x15 inch Circularly Polarized SlimLine RFID Antenna
Product Description

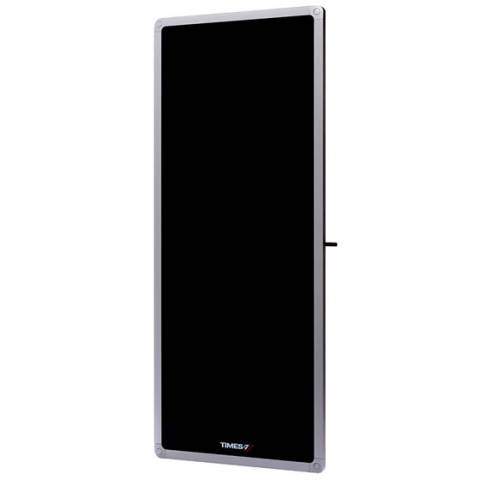

The Times-7 A6034S-71003 15x15 inch Circularly Polarized SlimLine RFID Antennais an ultra-low profile circularly polarized flat panel high gain antenna with a total thickness of just 12 mm (0.5 inch). With an even and narrow (50 degrees in both planes) beam, the A6034S provides for a highly accurate read zone.
Complete Fixed RFID Kits Available Here with ClearStream RFID Software >>
The A6034S is an ultra-low-profile, circularly polarized antenna for use in passive UHF RFID systems in the 902-928 Mhz FCC band. This antenna offers a 50 degrees of beamwidth in both planes, 9 dBic Gain, and a VSWR of 1.4:1 across the frequency spectrum, in a super low-profile package.
Find RFID Tags to use with your Fixed RFID Readers >>
What's Included:
- A6034S-71003 Slim Line High Gain Circularly Polarized RFID Antenna with SMA-Female Connector
Note: Requires RPTNC Male to Standard SMA Male cable to connect to Zebra and Impinj RFID Readers. See options above Add to Cart to purchase one.
Please note all Times-7 Antennas are NON-CANCELABLE / NON-RETURNABLE.
Times-7 A6034S-71003 Barcode Terminal Features
- Freq. Range: 902-928 Mhz | FCC RFID
- Gain: 9 dBic
- Front to back ratio: 13db
- Far-field 3dB beamwidth: 50° in both planes
- Operating / Storage Temperature: -20° to +55°C
- Polarity:Right Hand Circular Polarization
- Dimensions: 15.47" x 15.47" x 0.48"
- Connector: SMA female side fly lead (300mm / 1ft)
- Weight: 3.86 lbs
- Mounting: Integrated mounting holes
