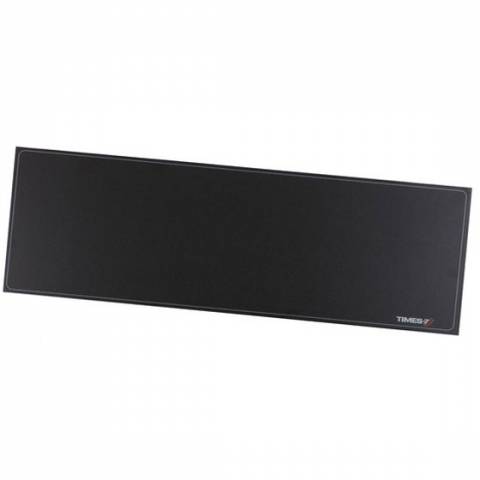

Times-7 A6590L-71211 SlimLine Ultra Low Profile UHF Ground Antenna
SKU: A6590L-71211
Times-7 A6590L-71211 SlimLine Ultra Low Profile UHF Ground Antenna
Product Description
The Times-7 SlimLine Ultra Low Profile UHF RFID Antenna is a hard wearing ultra-low profile UHF RFID linearly polarized ground antenna. At 910 mm by 300 mm (3 ft by 1 ft), it is a convenient doorway sized footprint and is optimized for RFID deployments involving moving products, assets and people.
Complete Fixed RFID Kits Available Here with ClearStream RFID Software >>
From conference attendee & people tracking to retail presence aware / loyalty marketing & race timing, the A6590L is ideal for applications where traditional side antennas are unsuitable or not optimized for the application. At just 8 mm / 0.3 in. thick, the durable, high performance A6590L is uniquely capable of lying flat on the ground within a doorway sized footprint, and can withstand payloads of over 440 lbs.
Find RFID Tags to use with your Fixed RFID Readers >>
What's Included:
- A6590L-71211 Ground / Floor Antenna with SMA-Female Connector
Note: Requires RPTNC Male to Standard SMA Male cable to connect to Zebra and Impinj RFID Readers. See options above Add to Cart to purchase one.
Please note all Times-7 Antennas are NON-CANCELABLE / NON-RETURNABLE.
Times-7 A6590L-71211 Barcode Terminal Features
- Freq. Range: 902-928 Mhz | FCC RFID
- Gain: 10 dBic
- Polarization: Linear Polarization
- 3db Beam Width: 72° in XZ, 23° in YZ
- Dimensions: 36" x 12". x 0.3"
- Connector: SMA female side fly lead (300 mm / 1 ft.)
- Weight: 4.4 lbs (2 kg)
- Ip Rating: IP65
- Operating Temp (celsius): -20 to +55 C
