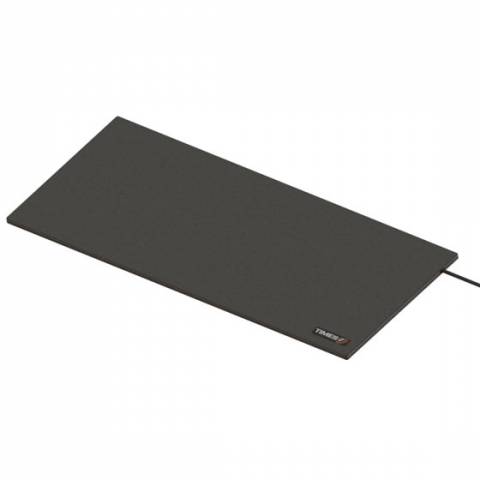

Times-7 A7060-71304 SlimLine Ultra Low Profile UHF RFID Antenna
SKU: A7060-71304
Times-7 A7060-71304 SlimLine Ultra Low Profile UHF RFID Antenna
Product Description
The Times-7 A7060-71304 Ultra Low Profile UHF Antenna is a Linearly (Vertical) polarized high gain antenna with an ultra-low profile Suitable for asset tracking in warehouse and vehicle fleet management.
Complete Fixed RFID Kits Available Here with ClearStream RFID Software >>
The A7040 is an ultra-low-profile, linearly polarized antenna for use in passive UHF RFID systems in the 902-928 Mhz FCC band. This antenna offers a 65 degree horizontal plane & a 30 degree vertical plane of beamwidth, 9 dBic of gain, and a VSWR of 1.6:1 across the frequency spectrum, in a super low-profile package.
Find RFID Tags to use with your Fixed RFID Readers >>
What's Included:
- A7060-71304 Slim Line Linearly Polarized RFID Antenna with SMA-Female Connector
Note: Requires RPTNC Male to Standard SMA Male cable to connect to Zebra and Impinj RFID Readers.
Please note all Times-7 Antennas are NON-CANCELABLE / NON-RETURNABLE.
Times-7 A7060-71304 Barcode Terminal Features
- Freq. Range: 902-928 Mhz | FCC RFID
- Gain: 9 dBic
- Front to back ratio: 24db
- Far-field 3dB beamwidth: 65° horizontal plane / 30° vertical plane
- Operating / Storage Temperature: -20° to +55°C
- Polarity: Linear Polarization
- Dimensions: 23.62" x 9.84" x 0.31"
- Connector: SMA female side fly lead (300 mm / 1')
- Weight: 2.6 lbs
- Mounting: Flat mount
