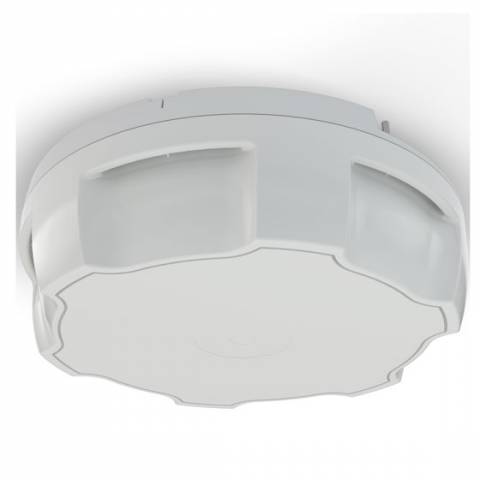

    The Zebra ATR7000-P2100A0-US is a new class of RFID reader offering advanced Zebra-only technology that provides visibility into the pinpoint location of all of your tagged assets. Now you can see where your inventory, forklifts, equipment, workers and more are located, and if they are on the move, in which direction they are moving. The result? Streamlined operations, reduced costs and better customer service.

    With its simplified configuration and management interface, the ATR7000 couldn't be easier to deploy. Multiple mounting and power options make installation a snap. Zebra software tools enable rapid development of your RFID applications - from a basic application at a single dock door to a complex application that covers every inch of the largest warehouse or manufacturing plant.

    Find RFID Tags to use with your ATR7000 Reader >>

    The ATR7000 electronically steers and processes several hundreds of narrow flashlight-style beams simultaneously, providing highly-accurate pinpoint asset location typically better than 2 ft./0.6 meters.

    What's Included:

    • Zebra ATR7000 RFID Reader with updated POE+. Power supply not required if connecting to a POE+ (802.3at) enabled switch. Users without POE+ will need to order Power Supply PWR-BGA24V78W1WW and Line Cord 23844-00-00R.

    Zebra ATR7000-P2100A0-US Features

    • Antenna: Steerable phase-array
    • Max Receive Sensitivity: -88 dBm
    • Air Protocols: EPCglobal UHF RFID Class 1 Gen2/ISO 18000-63
    • Frequency (UHF Band): 902-928 Mhz (US & Canada)
    • Beam Scanning Range: Azimuth 0-360°, Elevation 0-60°
    • 10/100 BaseT Ethernet (RJ45)
    • POE+ (802.3at) or AC-DC power supply rated for +24Vdc, 3.25 A
    • Diameter 19.0 in. (482.6 mm) , height 6.34 in. (161 mm), 11.1 lbs ( 5.03 kg)

    Zebra ATR7000 Specifications Zebra ATR7000 Full Specifications - PDF

    Protect Your Zebra ATR7000-P2100A0-US

    Your Zebra ATR7000 Fixed RFID Reader comes with a standard 1 year warranty that protects you from manufacturer defects only. That does not cover any damage you do to the reader as accidents can happen. That is where Zebra OneCare Select Service comes in. This service covers your Zebra ATR7000 for 3 years with hassle free repair service keeping your RFID readers running at peak performance.

    ATR7000 3 Year Zebra OneCare Essential Service

    If you wish to add this Warranty, Select the options above the "ADD TO CART" button.

    FAQ and Support Resources for the Zebra ATR7000-P2100A0-US

    Do I need software for my Zebra ATR7000 to read RFID Tags and save data?
    Yes, the Zebra ATR7000 does not come with software. Our ClearStream RFID Software is a great solution for the Zebra ATR7000 and is easy to configure allowing you to read RFID tag data to the data destination of your choice. Bundled Starter Kits are also available with Hardware and software.

    Can I use the ATR7000 readers in outdoor environments?
    The ATR7000 readers are designed for indoor use only and operating in dry temperature-controlled environments with a temperature range of -20C to +55C. The reader should not be enclosed in any type of enclosure as it may cause failure due to heat or may interfere with the RF signals.

    What is recommended mounting height for the ATR7000 reader?
    The ATR7000 RTLS Reader provides best performance and coverage when mounted approx. 12 - 20 feet high above the floor. For a successful deployment, a site survey of the environment and the choice of label/tag selection is recommended to determine the optimal height (see deployment guide for best practices and detail guidelines). Consider the Zebra label and tags optimized for use with ATR7000 reader to achieve best results.

    Zebra ATR7000 Quick Reference Guide Zebra ATR7000 Quick Reference Guide

     Zebra ATR7000 Integrator Guide Zebra ATR7000 Integrator Guide
