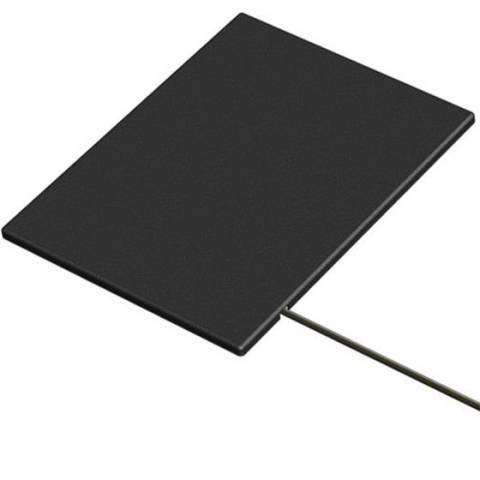

Times-7 B6031-71827 11 x 8.5 inch Circularly Polarized SlimLine RFID Antenna
SKU: B6031-71827
Times-7 B6031-71827 11 x 8.5 inch Circularly Polarized SlimLine RFID Antenna
Product Description
The Times-7 B6031-71827 11x8.5 inch Circularly Polarized SlimLine RFID Antenna is an ultra-low, circularly polarized flat panel antenna for UHF RFID applications in customer-facing or space-constrained environments, where up to 4 m (13 ft) read range performance is required. Similar in size and weight to a Tablet PC, the B6031 can easily blend into an office or retail environment.
Complete Fixed RFID Kits Available Here with ClearStream RFID Software >>
The B6031 is an ultra-low-profile, circularly polarized antenna for use in passive UHF RFID systems in the 902-928 Mhz FCC band. This antenna offers a 60 degree horizontal plane & an 80 degree vertical plane of beamwidth, 5 dBic of Gain, and a VSWR of 1.4:1 across the frequency spectrum, in a super low-profile package.
Find RFID Tags to use with your Fixed RFID Readers >>
What's Included:
- B6031-71827 Slim Line Circularly Polarized RFID Antenna with SMA-Female Connector
Note: Requires RPTNC Male to Standard SMA Male cable to connect to Zebra and Impinj RFID Readers.
Please note all Times-7 Antennas are NON-CANCELABLE / NON-RETURNABLE.
Times-7 B6031-71827 Barcode Terminal Features
- Freq. Range: 902-928 Mhz | FCC RFID
- Gain: 5 dBic
- Front to back ratio: -15db
- Far-field 3dB beamwidth: 60° horizontal plane / 80° vertical plane
- Operating / Storage Temperature: -20° to +55°C
- Polarity: Right Hand Circular Polarization
- Dimensions: 10.9" x 8.6" x 0.32"
- Connector: SMA female 195 side fly lead (300mm / 1ft.)
- Weight: 1.4 lbs
- Mounting: Integrated mounting holes
