PTS Impinj R720 UHF RFID Starter Kit with ClearStream Software

PTS Impinj R720 UHF RFID Starter Kit with ClearStream Software
Click image for larger view
    Code: PTS-IPJR700-KIT
    Price: $3,192.00
    Quantity in Basket: None
    Choose RFID Sample Tags:
      Add RFMAX RFID Power Mapper - $250.00


    Call us at 1-877-640-4152


    Send us an email at
    Chat with a member of our team

    Live Chat

    Calculate Shipping: PTS Impinj R720 UHF RFID Starter Kit with ClearStream Software
    Shipping Calculator Shipping Calculator

    Everything you need to quickly create an enterprise-class Fixed RFID System without programming.

    The Impinj R720 UHF RFID Starter kit is a scalable RFID System bringing performance, quality, and reliability necessary for RFID-based applications you can count on every day. Featuring a best-in-class Impinj R720 Rain RFID Reader and PTS's innovative, easy-to-configure, and grow RFID Software, ClearStream RFID tracks the information you need and maps it back to any pre-existing database, excel sheet, backend system, or cloud database.

    1. Track entire room contents instantly with the touch of a button.
    2. Set up scheduled tasks to do timed audits of critical assets.
    3. Track incoming and outgoing employees and the equipment they are carrying.

    Find RFID Tags to use with your R720 Kit >>

    With the largest install base of fixed RFID readers across a diverse range of applications and industries, Speedway Revolution readers are a powerful piece of every item visibility platform solution. Coupled with our ClearStream RFID software, the R720 Rain Reader delivers peak performance all day, every day.

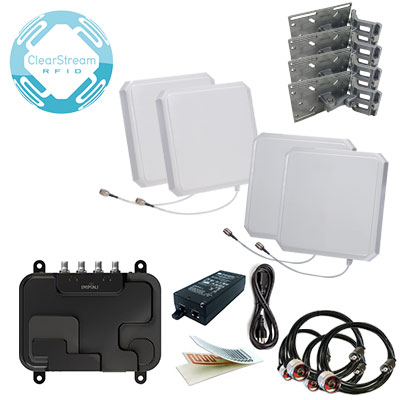

    This Starter Kit Includes:

    • 1yr ClearStream RFID Single Reader Subscription* - easy to use software with the flexibility to capture and sync RFID data any way you want.
    • Impinj R720 4 Port RFID Reader - suited for enterprise deployments of all sizes.
    • Ethernet Injector Power Supply and US AC Line Cord
    • 4 High Gain RFID Antennas with integrated 8ft cables, Mounting Brackets, and 12 ft Extension Cables
    • Choice of Sample Tag Pack
    • 3 Year R720 Warranty Extension

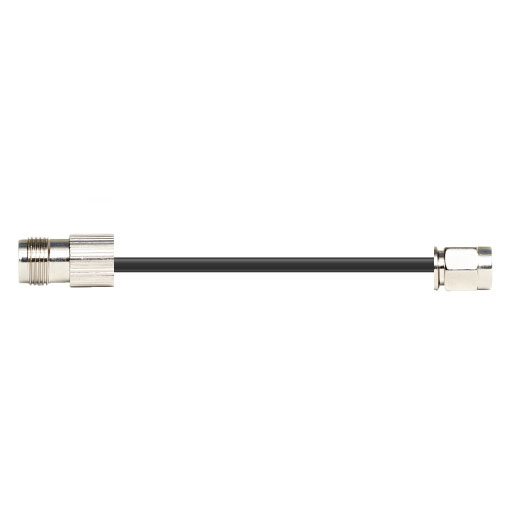

    Need more than 4 antennas? Add an 8-port Antenna hub to one of the R720's antenna ports enabling you to connect up to 8 antennas to a single port (32 total if 4 hubs are used). For each hub, you will need 1 Antenna Hub (IPJ-A6010-000), 1 RPTNC-Male to SMA Male cable (PT195-004-RTM-SSM) to connect the Antenna Hub to the R720 reader, and an SMA Male to RP-TNC Female cable (PT195012RTFSSM) for each Antenna you wish to connect to the hub. See the Suggested Add Ons tab to purchase.

    * 50% off first Year. Subscription will auto renew at full price after 1 year.

    Impinj R720 Hardware Specs

    • 4 monostatic ports (Reverse Polarity TNC)
    • Linux based OS with 1 GB Flash; 1G RAM, Quad-Core 1.4 GHz ARM53 Processor
    • Multicolor LEDs: System Status, Inventory, Firmware Upgrade, Antenna Activity and Network Activity
    • GPIO: 2 inputs, 3 outputs, optically isolated
    • 10/100/1000 BaseT Ethernet (RJ45) w/ POE support; 3 USB Host Ports (Type A), 1 Micro Device
    • Support for POE and POE+ (Power Over Ethernet)
    • US (only) Reader: 902 MHz to 928 MHz
    • Transmit Power: 10 - 33 dBm (PoE+, FCC / ETSI Upper Band)

    Impinj R720 Datasheet Impinj R720 Datasheet- PDF

    ClearStream RFID Software Specs

    • Stream RFID Tag data to Text, Excel or any ODBC database including SQL Server, MySQL, Oracle, MS Access and more.
    • Fields of data collected include EPC, TID, User Memory, Reader Name, Antenna Name, RSSI, Date/Time, Start Event, Tag Event and Count.
    • RFID Virtual Site Survey allows for testing of tags, and readers in a virtual environment.
    • With the ClearStream Public API users can create their own interface to turn on and off readers.
    • GPIO integration allows the use of light-bars, buttons and motion sensors for with settable alerts/events.

    Learn More about ClearStream RFID >>

    Protect Your Impinj PTS-IPJR700-KIT RFID Kit

    Your Impinj Speedway R720 Fixed RFID Reader comes with a standard 1 year warranty that protects you from manufacturer defects and access to major and minor firmware updates. The 3 year Warranty Extension adds 3 additional years on top of the initial 1 year for a toal of 4 years keeping your readers running at peak performance.

    R720 3 Year Warranty Extension

    The 3 Year Warranty Extension is included with this kit.

    FAQ and Support Resources for the Impinj PTS-IPJR700-KIT RFID Kit

    Do I need software for my Impinj R720 to read RFID Tags and save data?
    Yes, the Impinj R720 does not come with software. Our ClearStream RFID Software included in this kit is a great solution for the Impinj R700 and is easy to configure allowing you to read RFID tag data to the data destination of your choice.

    Impinj R720 User Guide Impinj R720 User Guide

    Impinj R720 Quick Start Guide Impinj R720 Quick Start Guide

    Impinj R720 Product Brief Impinj R720 Product Brief

    ClearStream RFID User Guide ClearStream RFID User Guide

    ClearStream RFID Quick Start Guide ClearStream RFID Quick Start Guide

    ClearStream Training and Tutorial Videos ClearStream Training and Tutorial Videos

    ClearStream RFID Software Community Support Forum ClearStream RFID Software Community Support Forum
