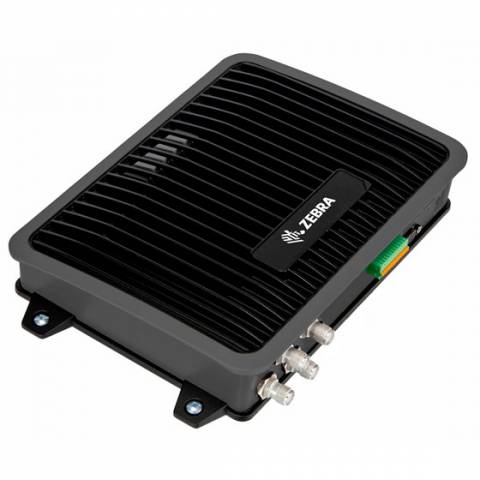

Zebra FX9600-42320A50-US 4 Port RFID Reader

Zebra FX9600-42320A50-US 4 Port RFID Reader
Click image for larger view
    Code: FX9600-42320A50-US
    Price: $1213.49 - Add to Cart for Today's Low Price!
    Quantity in Basket: None
    Add ClearStream:
    Monthly Subscription
    Yearly Subscription
    None
    Add Service:
    None
    Quantity:

    QUESTIONS?

    Call us at 1-877-640-4152

    877-640-4152

    Send us an email at sales@ptsmobile.com
    Chat with a member of our team

    Live Chat

    Begin your RFID tag streaming journey with ClearStream today.

    Close
    Calculate Shipping: Zebra FX9600-42320A50-US 4 Port RFID Reader

    Shipping Calculator Shipping Calculator

    To achieve maximum visibility and efficiency in your most rugged environments, your business needs an RFID reader that can keep up with the high volume and wide variety of tagged items that go in, out and through your warehouse and dock doors each day.

    Complete Fixed RFID Kits Available Here with ClearStream RFID Software >>

    The Zebra FX9600-42320A50-US FX9600 4-Port Fixed RFID Reader is the next generation of Zebra Fixed RFID Readers replacing the FX9500. The new reader adds POE and delivers extremely high read performance with +33 dbm of RF output, so you can quickly and accurately move and track large volumes of your RFID-tagged cases, pallets and items.

    Find RFID Tags to use with your FX9600 Reader >>

    The FX9600 4 Port reader sports a rugged design with its IP53 sealed housing allowinf for installation in environments that may experience dust and water and also meets MIL-STD-810G requirements.

    What's Included:

    • Zebra FX9600 4 Port (monostatic) RFID Reader with POE / POE+. Power supply not required if connecting to a POE enabled switch however would require external power to utilize GPIO. Users without POE will need to order Power Supply PWR-BGA24V78W1WW and Line Cord 23844-00-00R which can also power the GPIO ports.

    Note: Requires read antennas and cables to fully function. Please see Antennas and Cables tab.

    Zebra FX9600-42320A50-US Features

    • 4 monostatic ports; (Reverse Polarity TNC)
    • Max Receive Sensitivity: -86 dBm monostatic
    • Air Protocols: ISO 18000-63 (EPC Class 1 Gen 2 V2)
    • Frequency (UHF Band): US (only) Reader: 902 - 928 MHz
    • Transmit Power Output: 0 dBm to +33 dBm (POE+ 802.3at, Universal 24V DC Power Supply), 0 dBm to +31.5 dBm (POE 802.3af)
    • 10/100 BaseT Ethernet (RJ45); USB Host & Client (Type A & B); Serial (DB9)
    • General Purpose I/O: 4 inputs, 4 outputs, optically isolated (Terminal Block)
    • Linux based OS with 512 MB Flash and 256MB DRAM

    Zebra FX9600 Specifications Zebra FX9600 Full Specifications - PDF

    Protect Your Zebra FX9600-42320A50-US

    Your Zebra FX9600 Fixed RFID Reader comes with a standard 1 year warranty that protects you from manufacturer defects only. That does not cover any damage you do to the reader as accidents can happen. That is where Zebra OneCare Select Service comes in. This service covers your Zebra FX9600 for 3 years with hassle free repair service keeping your RFID readers running at peak performance.

    FX9600 3 Year Zebra OneCare Essential Service

    If you wish to add this Warranty, Select the options above the "ADD TO CART" button.

    FAQ and Support Resources for the Zebra FX9600-42320A50-US

    Do I need software for my Zebra FX9600 to read RFID Tags and save data?
    Yes, the Zebra FX9600 does not come with software. Our ClearStream RFID Software is a great solution for the Zebra FX9600 and is easy to configure allowing you to read RFID tag data to the data destination of your choice. Bundled Starter Kits are also available with Hardware and software.

    I have previously deployed FX9500s, will my application work with the FX9600?
    If your application has been developed using Zebra's RFID3 API, then yes, your application will work with the FX9600. However, if you have developed your application using Sirit's C2API or a python script, these are not supported on the FX9600.

    Does the FX9600 support bi-static mode of operation?
    The FX9600 does not support bi-static mode of operation - only monostatic operation. With the improvements in reader and tag technology the industry in general is no longer offering bistatic feature. The monostatic configuration requires less antenna and cables and is the most cost-effective configuration for practically most deployments today.

    What Wi-Fi dongles does the FX9600 support?
    The FX9600 supports the following Wi-Fi dongles:

    • TP-Link: AC 1200 Realtek RTL8812AU
    • ASUS: USB-AC56 Realtek RTL8812AU
    • Alfa Network Realtek RTL8812AU
    • Alfa AWUS036H
    • CCrane Versa Wifi USB Adapter II

    Zebra FX9600 Quick Start Guide Zebra FX9600 Quick Start Guide

    Zebra FX9600 Integrator Guide Zebra FX9600 Integrator Guide

    Zebra FX9600 Tech Accessory Guide Zebra FX9600 Tech Accessory Guide
